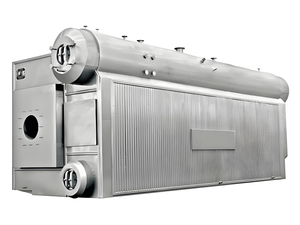

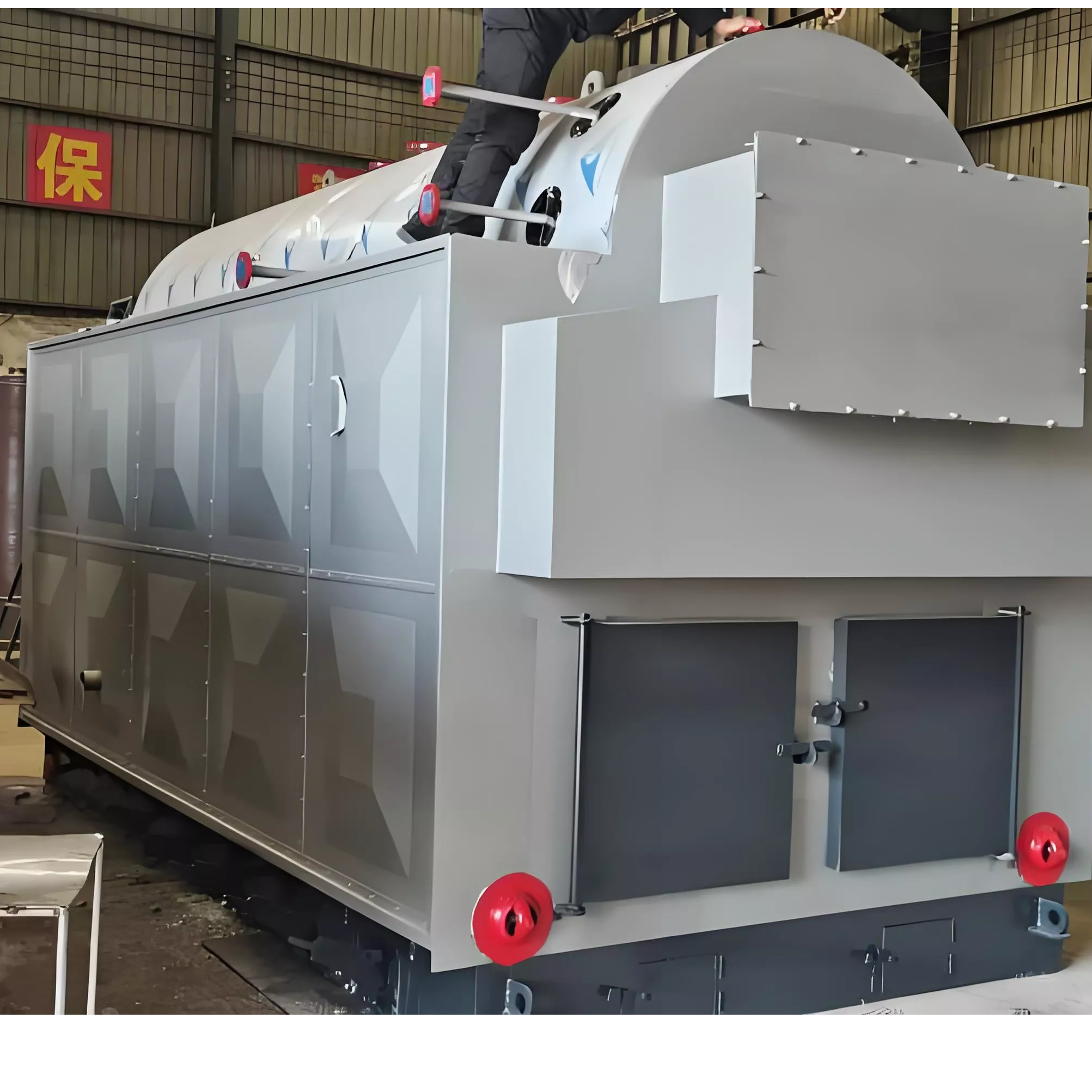

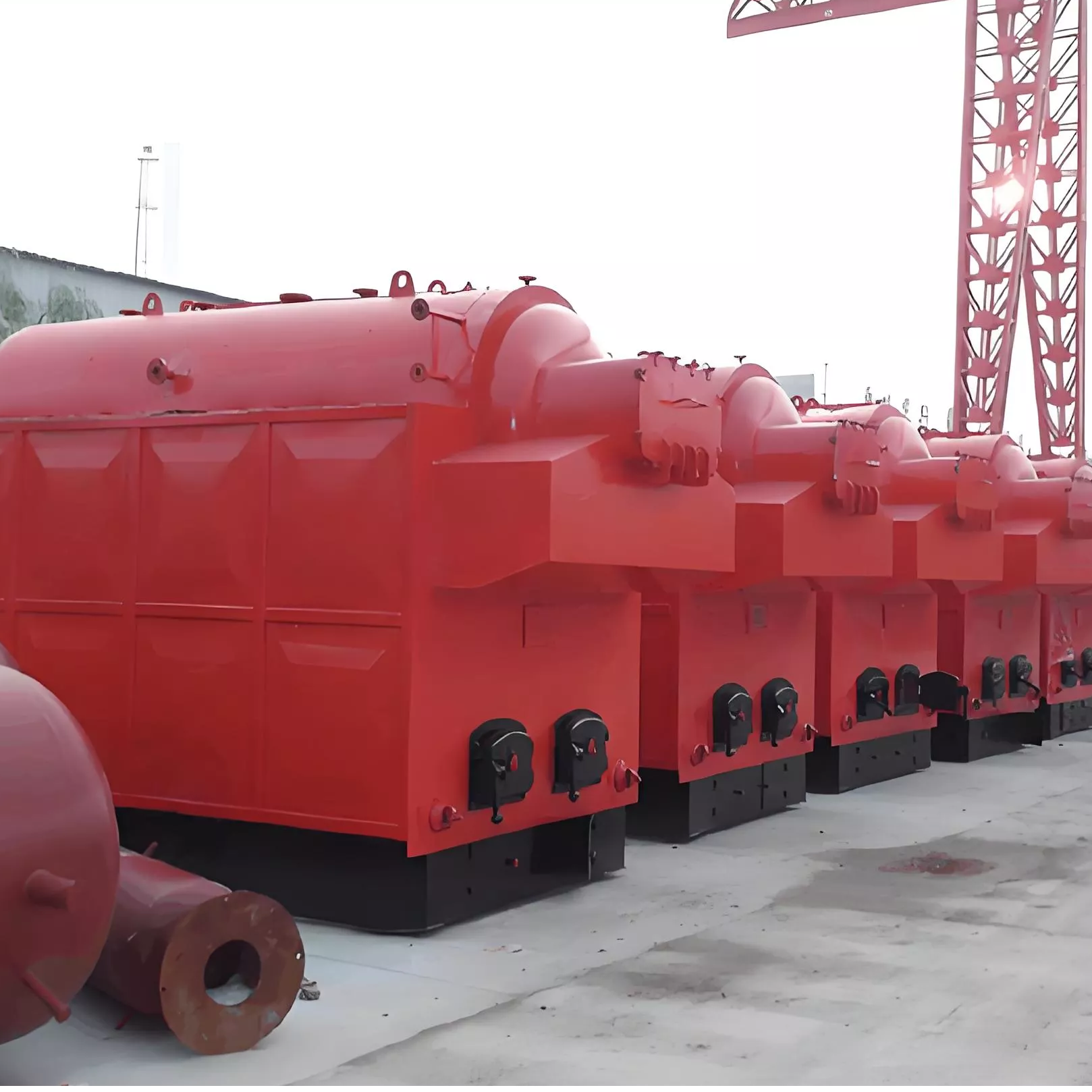

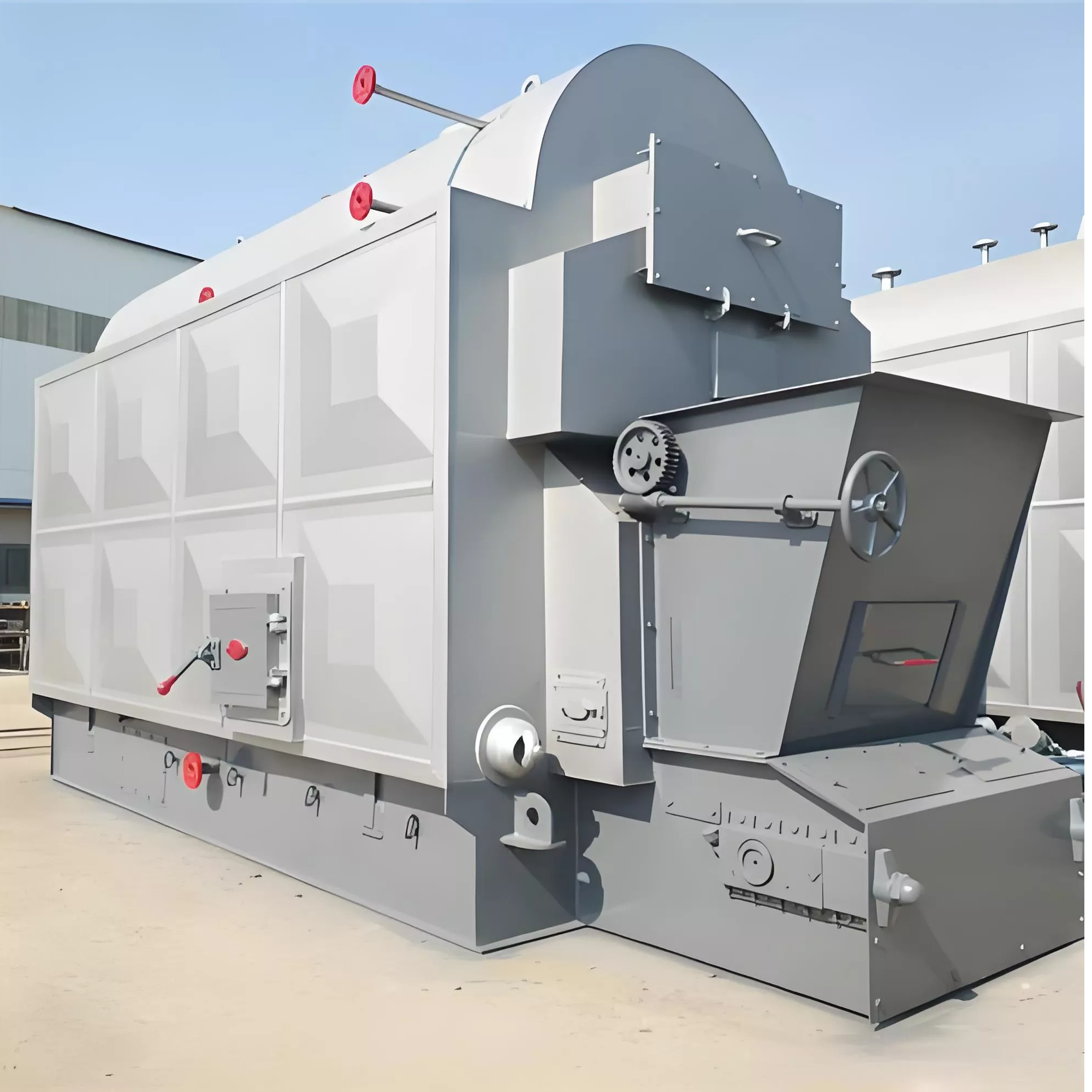

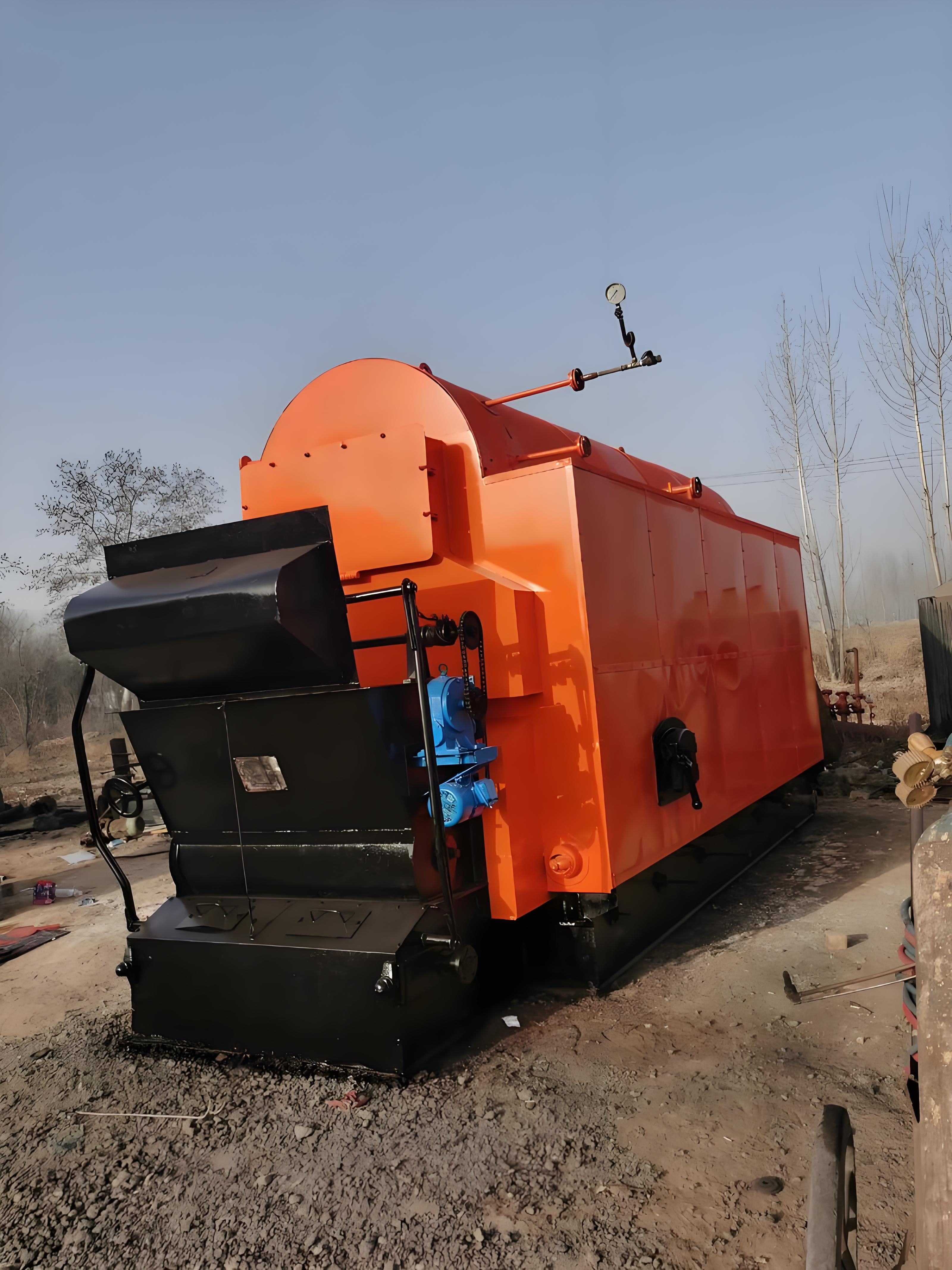

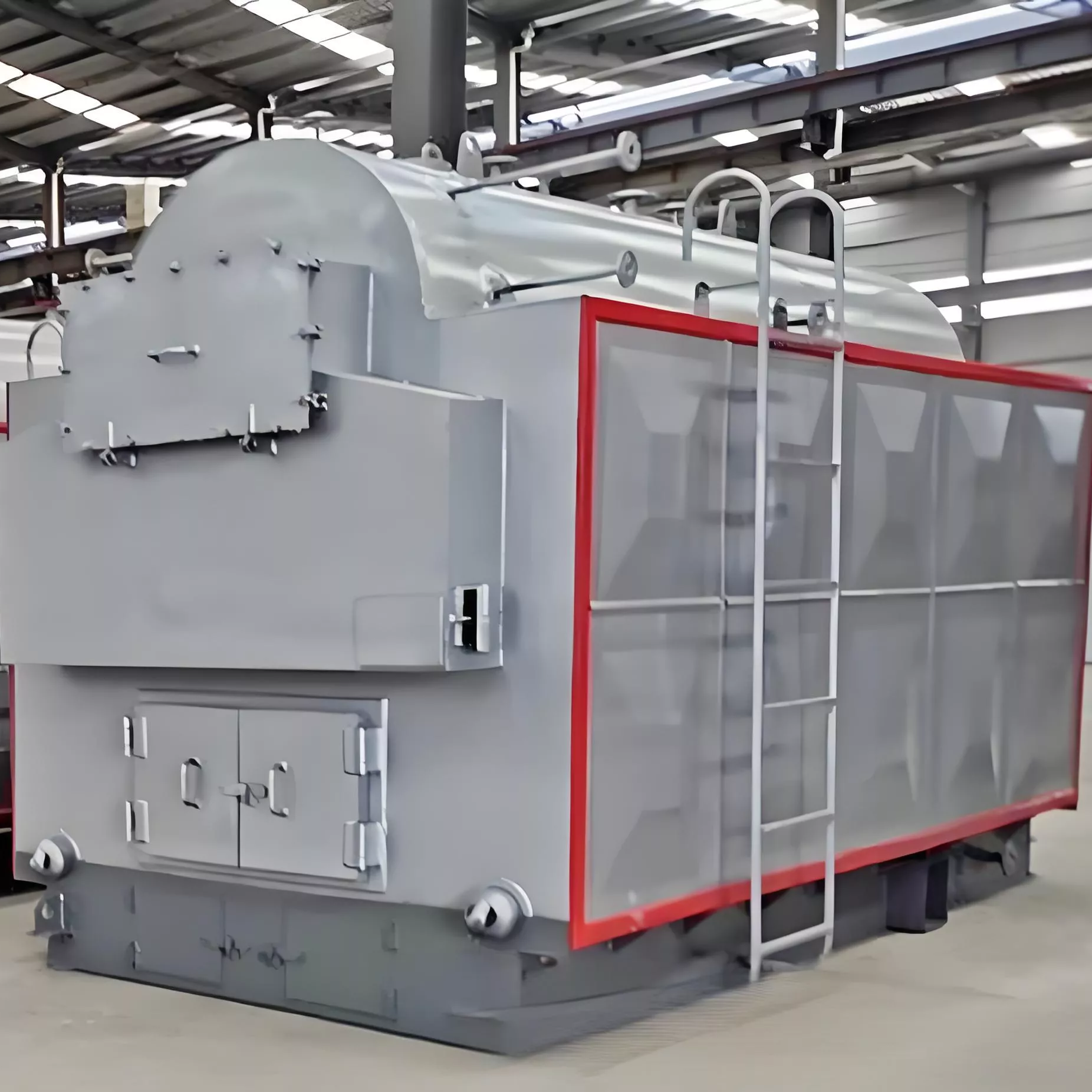

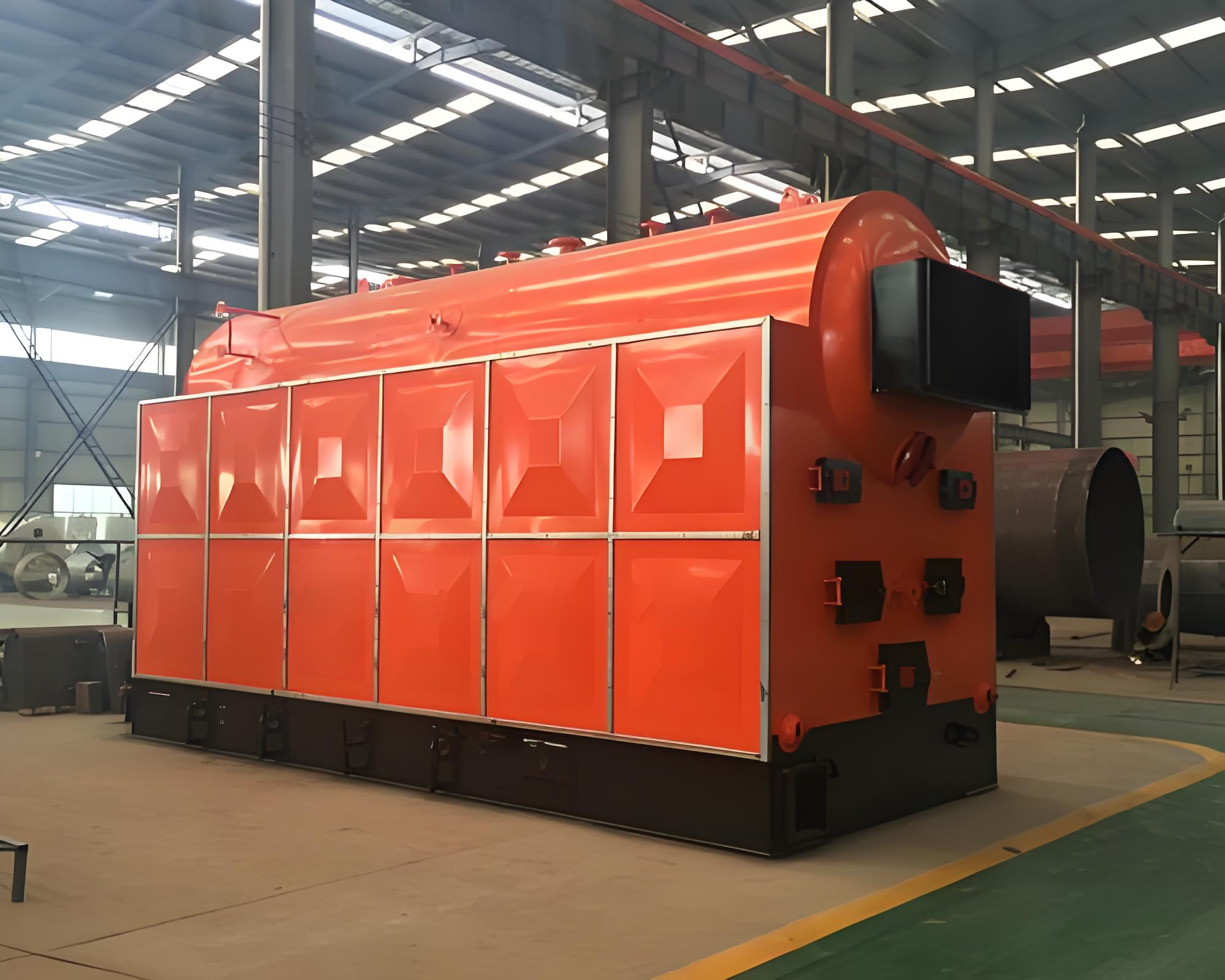

Biomass boiler
Biomass boilers utilize agricultural and forestry waste, such as straw and sawdust, as fuel to generate steam, hot water, or hot air. They offer excellent environmental performance, with near-zero carbon emissions, low levels of harmful gases, and the ability to recycle waste. Their thermal efficiency exceeds 80%, 15% higher than traditional coal-fired boilers. Their convenient automated operation and stable performance make them widely used in industrial production, district heating, biomass power generation, and organic waste treatment.
| 单位 | SZL2-1.25 (1.6)-BMF | SZL4-1.25 (1.6)-BMF | SZL6-1.25 (1.6)-BMF | SZL8-1.25 (1.6)-BMF | SZL10-1.25 (1.6)-BMF | SZL12-1.25 (1.6)-BMF | SZL15-1.25 (1.6)-BMF | SZL20-1.25 (1.6)-BMF | SHL20-1.25 (1.6)-BMF | SHL35-1.25 (1.6)-BMF | |
| Rated evaporation capacity | t/h | 2 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | 20 | 35 |
| Operating pressure | Mpa | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) | 1.25(1.6) |
| Saturated steam temperature | ℃ | 193(204) | 193(204) | 193(204) | 193(204) | 193(204) | 193(204) | 193(204) | 193(204) | 193(204) | 193(204) |
| Water supply temperature | ℃ | 20 | 20 | 20 | 20 | 105 | 105 | 105 | 105 | 105 | 105 |
| Heating surface area (body) | m² | 70.02 | 113 | 139.2 | 156 | 233.6 | 280.33 | 355 | 504 | 522 | 752.75 |
heating surface area (Economizer) | m² | 21.56 | 52.3 | 130.8 | 174.4 | 174.4 | 174.4 | 261.6 | 377.6 | 377.6 | 444 |
| Effective area of boiler exhaust | m² | 4.2 | 5.6 | 7.78 | 9.1 | 11.8 | 13.4 | 17.7 | 20.25 | 20.83 | 33.1 |
| Adapt to Fuel | Biomass particles | ||||||||||
Boiler fuel consumption (Biomass pellets) | Kg/h | 249~430 | 516~860 | 756~1260 | 1008~1680 | 1260~2050 | 1476~2460 | 1845~3075 | 2436~4060 | 2436~4060 | 4248~7078 |
| Boiler thermal efficiency | % | >78 | >78 | >80 | >80 | >82 | >82 | >82.5 | ≥83 | ≥83 | ≥83 |
| Boiler power consumption | KW | 25.95 | 43.5 | 66 | 75 | 96.1 | 116.1 | 135 | 190.7 | 190.7 | 360.5 |
Maximum transportation condition size (Length x Width x Height) | m | 7.07×2.45×3.38 | 7.41×2.7×3.52 | 6.29×2.7×3.52 | 7.0×2.7×3.52 | 7.89×3.16×3.54 | 8.6×3.16×3.54 | 10.55×3.3×3.52 | 12.6×3.6×3.86 | 11.3×4.5×3.61 | 13.8×5.9×4.1 |
| Maximum weight of transported items | t | 25.5 | 34.5 | 21 | 23 | 28 | 29.5 | 39 | 49.86 | 51.3 | 76.5 |
External dimensions after installation (Length x Width x Height) | m | 7.46×3.7×3.82 | 8.6×4.2×4.5 | 8.0×4.6×6.15 | 8.71×4.6×6.15 | 9.38×4.7×6.2 | 10.32×4.7×6.72 | 11.5×4.72×6.72 | 15×6.0×8.5 | 13.5×4.5×16.5 | 15.4×6.7×16.6 |

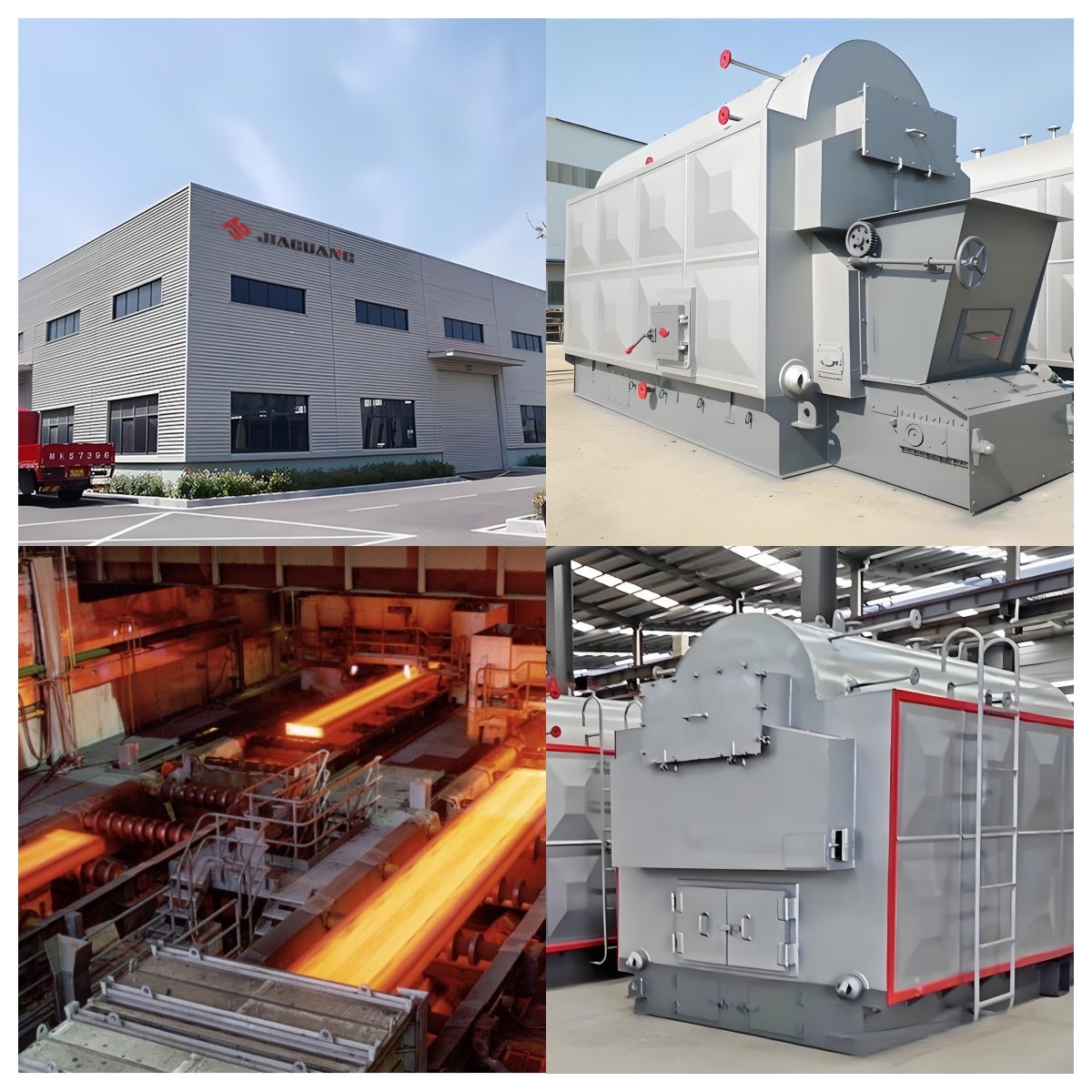

Company Profile
Shandong Jiaguang International has been deeply involved in the boiler industry for over 20 years and has become a reliable supplier of high-quality boiler products. With advanced manufacturing capabilities, strong research and development capabilities, and a pursuit of excellence, we provide services to numerous industries such as construction, automotive, manufacturing, and infrastructure construction. At the same time, we also focus on providing comprehensive boiler solutions for multiple industries such as chemical, power generation, and heating, committed to promoting efficient development of various industries with high-quality products and services.
1. Advanced production qualifications: The company has a national A-level boiler manufacturing license, as well as a Level 3 pressure vessel design and manufacturing license and Level 3 manufacturing license. Equipped with the most advanced rolling mills, galvanizing production lines, and color coating equipment. Obtained national level certifications such as ISO 9001 Quality Management System, ISO 14001 Environmental Management System, and CE certification.
2. Professional R&D team: Composed of 286 engineers and technicians (including 52 senior engineers), constantly innovating, developing new steel varieties, and improving production processes. Collaborate with industry-leading research institutions to ensure cutting-edge product performance.
3. Strict quality control: From raw material inspection to final product certification, each stage undergoes comprehensive testing. The product complies with international standards such as ASTM, JIS, and EN to ensure reliability and consistency.
4. Customized solutions: Provide customized steel products with various thicknesses, widths, and surface treatments.
Professional technical support to assist customers in selecting the best materials for specific applications.
5. Global market coverage: Our products are exported to over 50 countries, serving customers in Asia, Europe, America, and the Middle East. An efficient logistics network ensures timely delivery and competitive prices.
6. Sustainable Development Commitment:
We prioritize fulfilling our environmental responsibilities, as follows:
Adopting energy-saving production technology. Minimize waste to the greatest extent possible through recycling programs. Develop environmentally friendly coatings and treatment methods to reduce carbon footprint.
Product packaging
1，Standard protective packaging for biomass boilers
The main body is constructed from high-strength corrugated cardboard. Small boilers use three-ply B-flute corrugated cardboard, while large industrial boilers use five-ply AB-flute corrugated cardboard to provide pressure resistance and cushioning. The interior is filled with environmentally friendly EPE pearl cotton, customized to the component shape, for impact resistance and recyclability. Large boilers are reinforced with galvanized steel strips for increased compression resistance.
Small boilers are packaged as a whole with multiple layers of internal cushioning; large boilers are packaged in modular packages, each with its own protective shield and an included inventory. The packaging is prominently labeled with product information and handling instructions. Moisture-proof treatment is also provided, including silica gel desiccant and moisture-proof paper. Key areas are secured with supports to ensure safe transportation.
2，Customized packaging (optional)
Customization is based on boiler size and component characteristics: small units use dedicated cartons with multiple layers of cushioning; large units are packaged in modular packages, with custom pallets and anti-static materials. Key areas feature dedicated supports, custom logos, and optional moisture-proof coatings, ensuring both protection and environmental friendliness, adapting to diverse transportation and installation requirements.
Common problems in foreign trade sales of biomass boilers.
Q1. Does it meet the certifications of the target country?
A1. We offer international certifications such as CE and ASME, meeting the compliance requirements of regions like the EU and North America.
Q2. How do we handle tariffs and customs clearance?
A2. We assist with providing customs declaration documents and recommending cooperative customs clearance agents to reduce cross-border process costs.
Q3. Will the equipment be damaged during transportation?
A3. We provide customized shock-resistant export packaging, connect with professional logistics, and track the shipment status throughout the entire process.
Q4.Does after-sales service cover overseas markets?
A4.We provide remote technical support, reserve spare parts for key components, and have partnered after-sales locations in certain regions.
Q5.Is the fuel compatible with local resources?
A5.We can customize the combustion system based on local biomass fuels (such as palm shells and wood chips).
