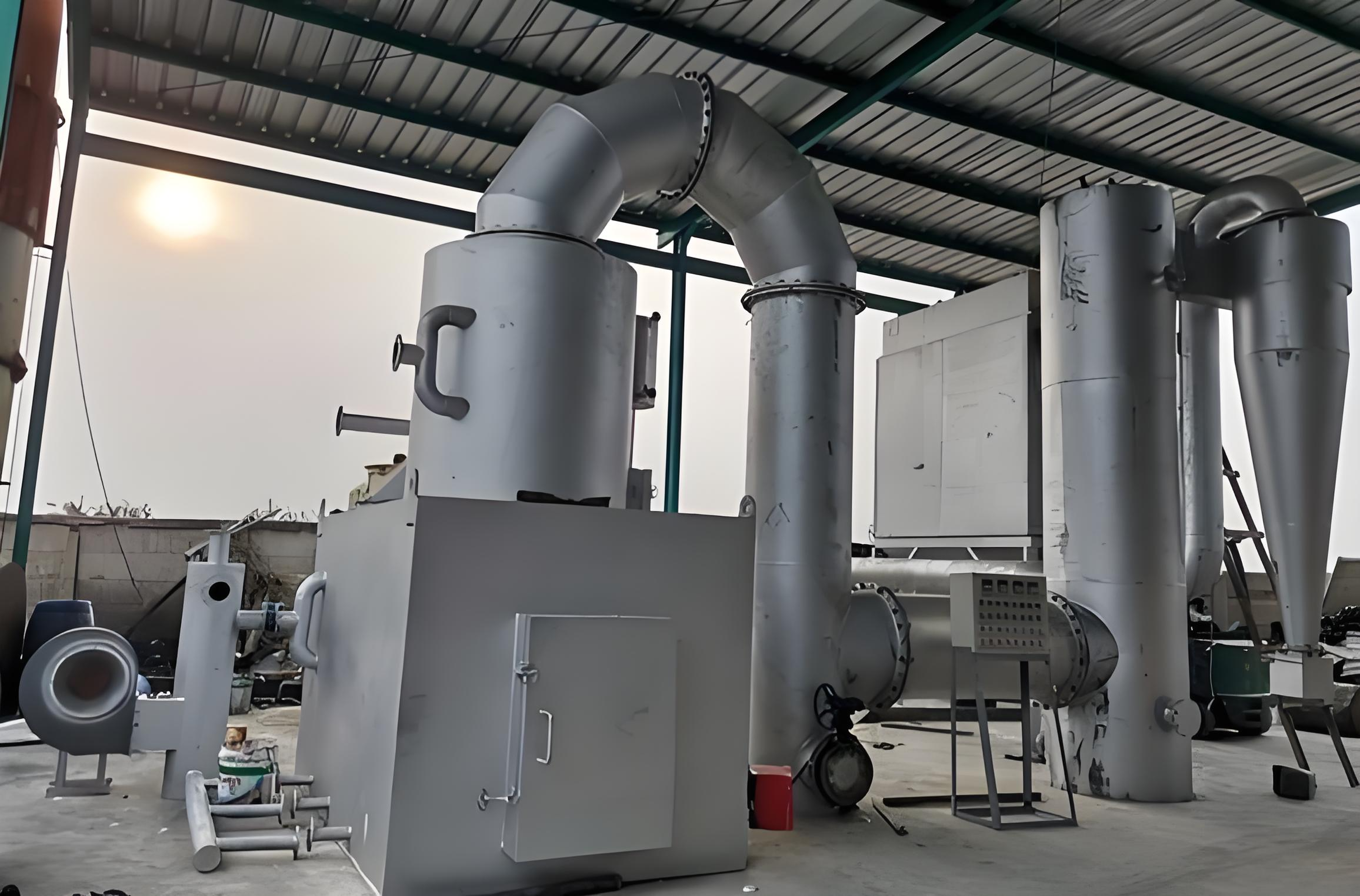

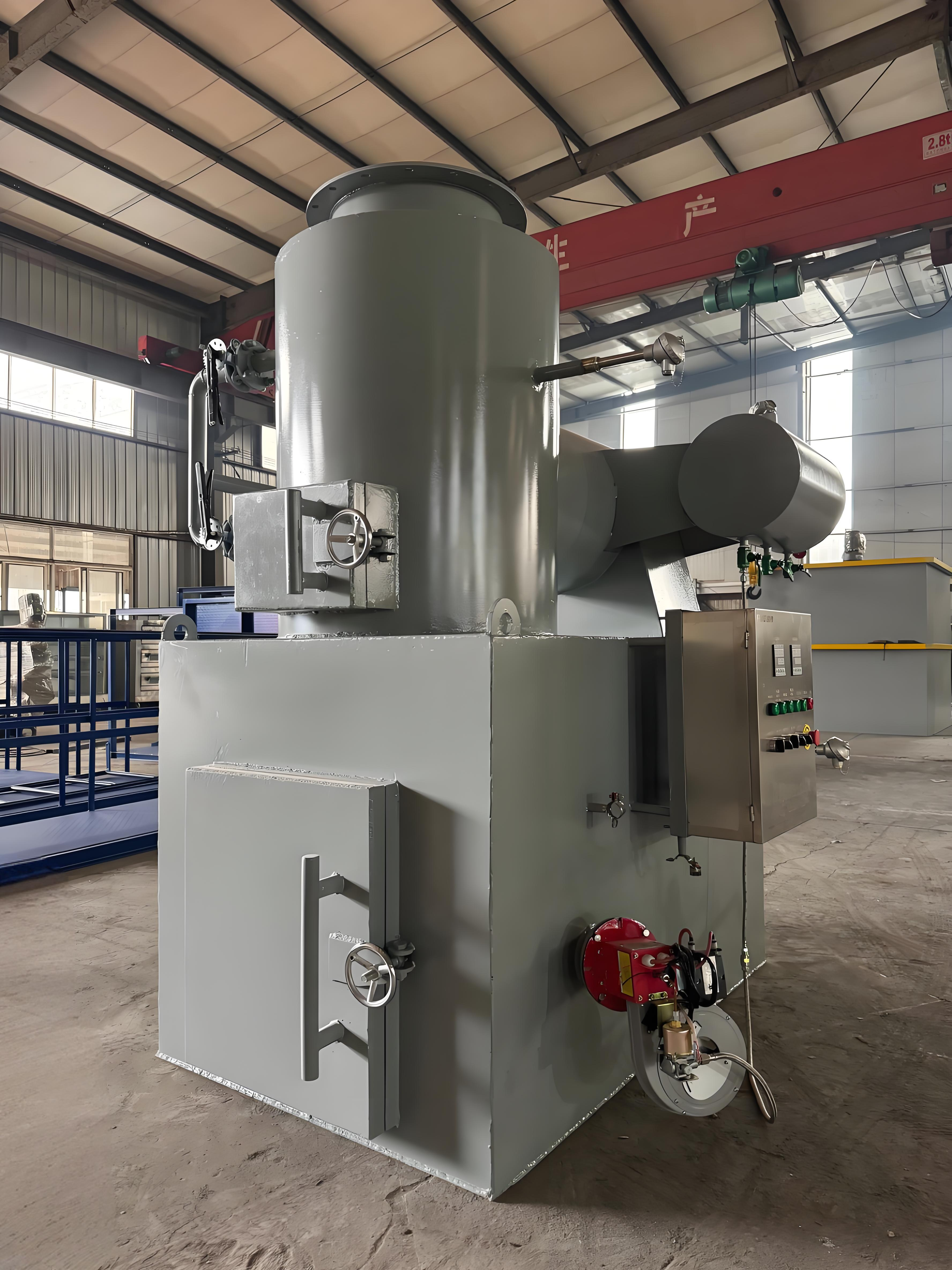

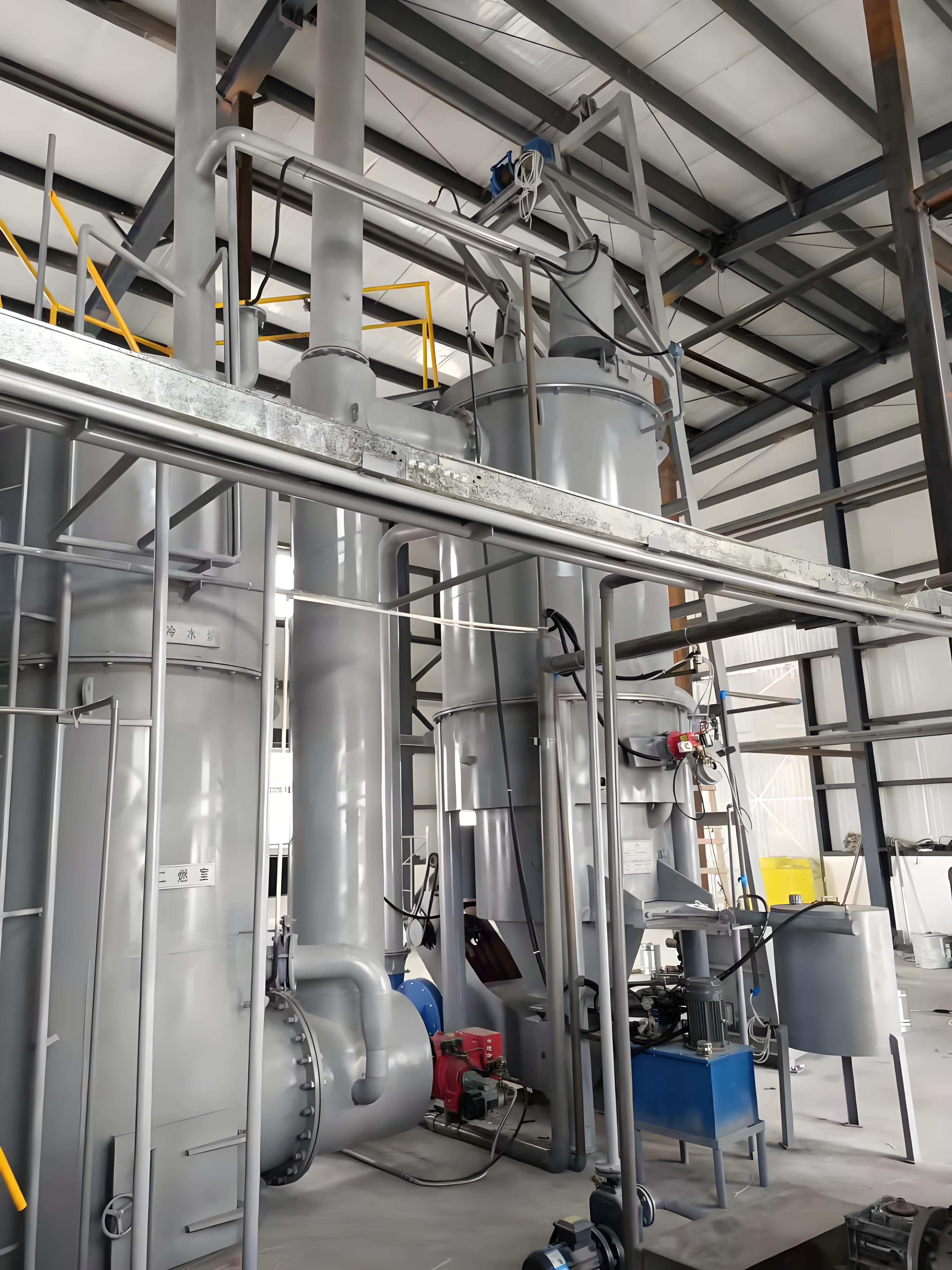

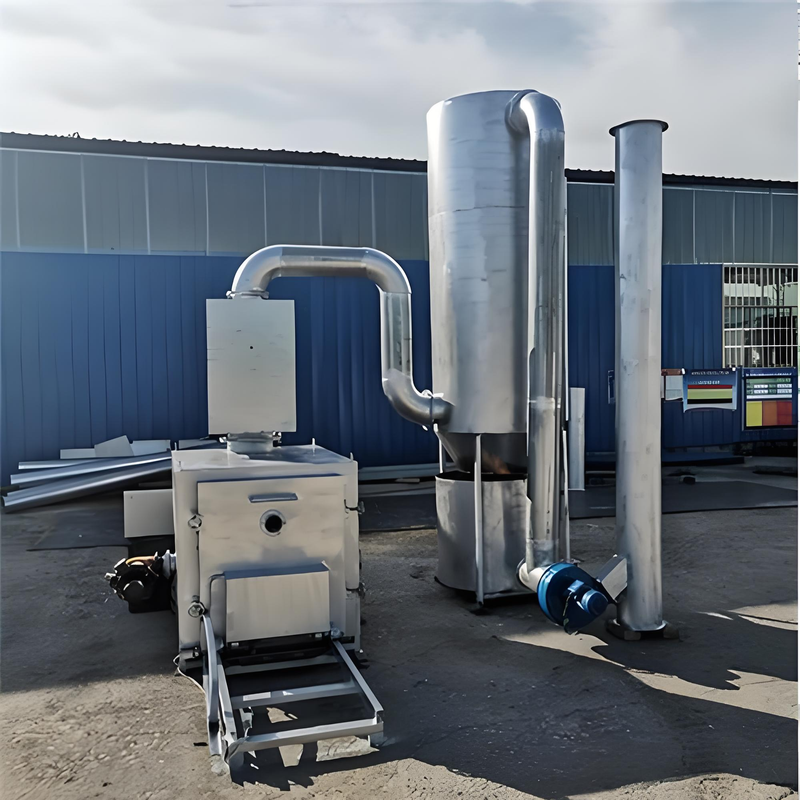

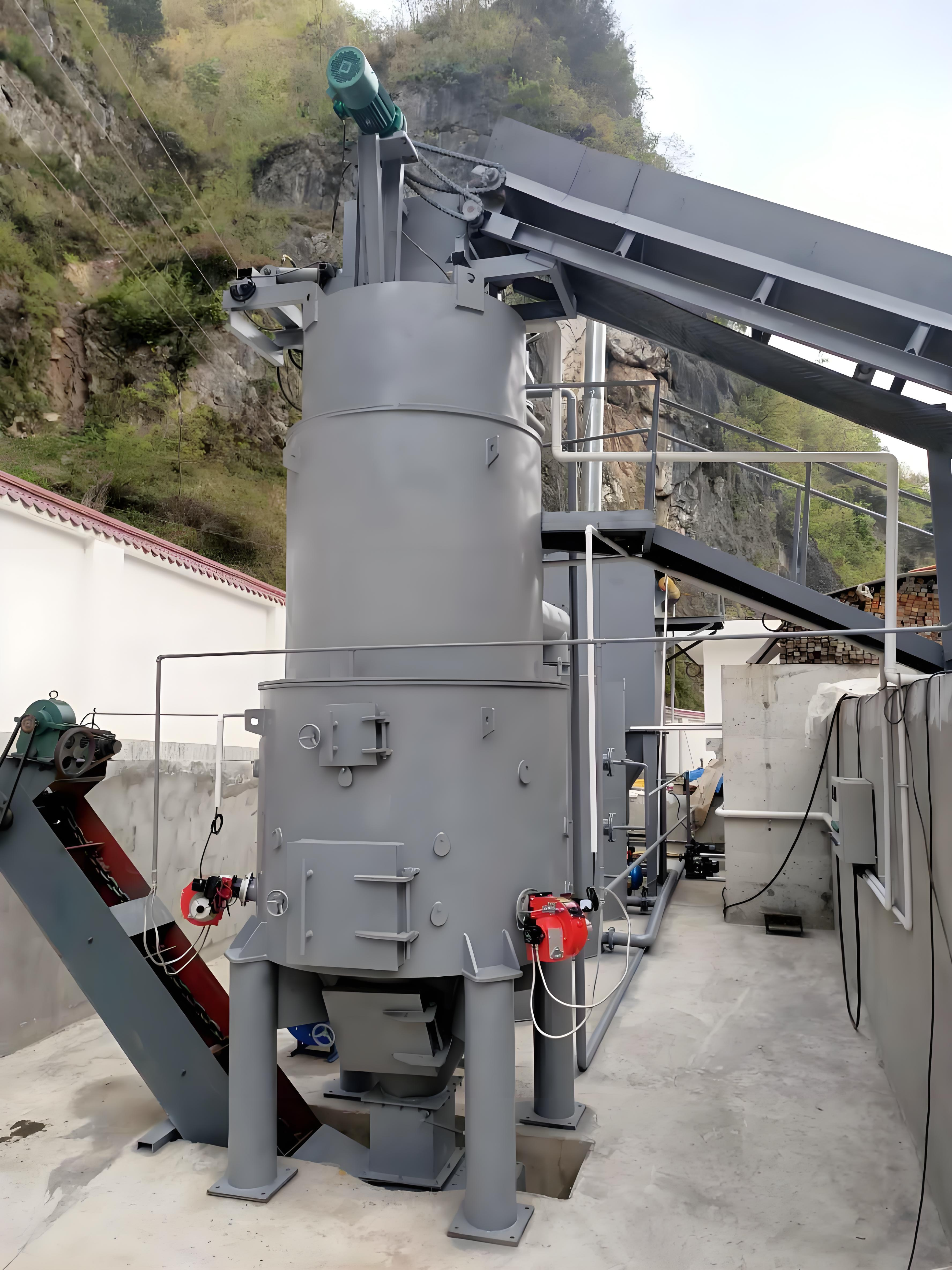

Garbage incinerator
Our company's waste incinerators offer a daily processing capacity of 50-300 tons, suitable for a wide range of applications, including municipal solid waste and industrial solid waste. Utilizing mechanical grate or pyrolysis gasification technology, coupled with a low-nitrogen combustion system, flue gas emissions far exceed national standards, minimizing and harmlessly treating solid waste.
The equipment features intelligent temperature control and automatic slag removal, and can be integrated with waste heat recovery devices to facilitate resource utilization. The furnace is constructed of corrosion-resistant materials and features a modular design for easy installation and maintenance. Custom solutions are also available. Our products are CE and EPA certified, making them suitable for domestic and international projects, providing reliable equipment support for the development of "zero-waste cities."
| Type/Item | LDF-20 | LDF-30 | LDF-50 | LDF-150 | LDF-300 | LDF-500 |
|---|---|---|---|---|---|---|
| Incineration Capacity | 10 - 20 kg/time (3 - 6 times per day) | 20 - 30 kg/time (3 - 6 times per day) | 30 - 50 kg/time (3 - 6 times per day) | 100 - 150 kg/time (3 - 6 times per day) | 200 - 300 kg/time (3 - 6 times per day) | 300 - 500 kg/time (3 - 6 times per day) |
| Incineration Size m (Length × Height × Width) | 1.6×1.3×1.75 | 1.45 × 0.9 × 2.45 | 1.8×1.15×3 | 2×1.5 × 3.5 | 2.25 × 1.6 × 3.8 | 3×2×4.8 |
| Garbage Inlet Size (mm) | 380×480 | 480×600 | 620 × 800 | 760 × 960 | 900 ×1100 | 1080 × 1280 |
| Chimney (Outer Diameter mm) | ∅ 280 | ∅ 280 | ∅ 280 | Diameter 300 | Diameter 400 | Diameter 460 |
| Inducer Fan | 0.25 kW | 0.37 kW | 0.37 kW | 0.5 kW | 0.75 kW | 0.75 kW (Two units) |
| Burner #1 | Power 0.11 kW Fuel Consumption 4 - 6 kg/h | Power 0.11 kW Fuel Consumption 4 - 6 kg/h | Power 0.11 kW, Fuel Consumption 4 - 10 kg/h | Power 0.11 kW, Fuel Consumption 4 - 10 kg/h | Power 0.22 kW, Fuel Consumption 7 - 14 kg/h | Power 0.22 kW, Fuel Consumption 7 - 14 kg/h |
| Burner #2 | Power 0.11 kW Fuel Consumption 4 - 10 kg/h | Power 0.11 kW Fuel Consumption 7 - 14 kg/h | Power 0.11 kW Fuel Consumption 7 - 14 kg/h | Power 0.22 kW, Fuel Consumption 10 - 20 kg/h per hour | Power 0.37 kW Fuel Consumption 14 - 26 kg/h | Power 0.37 kW, Fuel Consumption 20 - 30 kg/h per hour |
| Operating Voltage | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Approximate Weight (kg) | 1800 | 3000 | 5000 | 8000 | 10000 | 16000 |

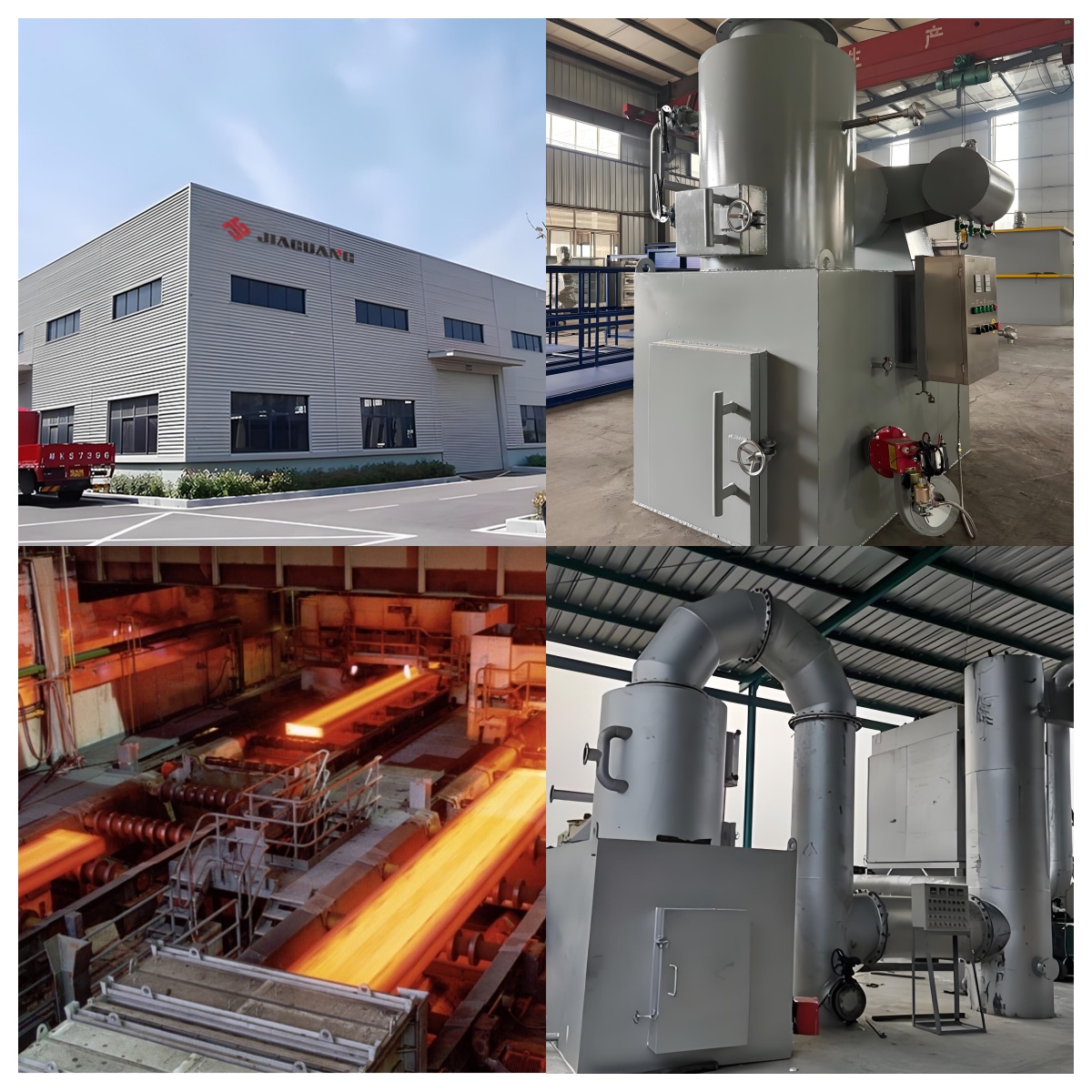

Company Profile
Shandong Jiaguang International has been deeply involved in the boiler industry for over 20 years and has become a reliable supplier of high-quality boiler products. With advanced manufacturing capabilities, strong research and development capabilities, and a pursuit of excellence, we provide services to numerous industries such as construction, automotive, manufacturing, and infrastructure construction. At the same time, we also focus on providing comprehensive boiler solutions for multiple industries such as chemical, power generation, and heating, committed to promoting efficient development of various industries with high-quality products and services.
1. Advanced production qualifications: The company has a national A-level boiler manufacturing license, as well as a Level 3 pressure vessel design and manufacturing license and Level 3 manufacturing license. Equipped with the most advanced rolling mills, galvanizing production lines, and color coating equipment. Obtained national level certifications such as ISO 9001 Quality Management System, ISO 14001 Environmental Management System, and CE certification.
2. Professional R&D team: Composed of 286 engineers and technicians (including 52 senior engineers), constantly innovating, developing new steel varieties, and improving production processes. Collaborate with industry-leading research institutions to ensure cutting-edge product performance.
3. Strict quality control: From raw material inspection to final product certification, each stage undergoes comprehensive testing. The product complies with international standards such as ASTM, JIS, and EN to ensure reliability and consistency.
4. Customized solutions: Provide customized steel products with various thicknesses, widths, and surface treatments.
Professional technical support to assist customers in selecting the best materials for specific applications.
5. Global market coverage: Our products are exported to over 50 countries, serving customers in Asia, Europe, America, and the Middle East. An efficient logistics network ensures timely delivery and competitive prices.
6. Sustainable Development Commitment:
We prioritize fulfilling our environmental responsibilities, as follows:
Adopting energy-saving production technology. Minimize waste to the greatest extent possible through recycling programs. Develop environmentally friendly coatings and treatment methods to reduce carbon footprint.
Q1.Can the product pass certification in the target country?
A1.We offer certifications such as CE, EPA, and ASME, and can also adjust to local standards and assist with certification.
Q2.How are transportation and customs clearance handled?
A2. We partner with logistics providers like Maersk, provide customs declaration documents, and recommend local customs clearance agents.
Q3.Can it adapt to local waste types?
A3.We can adjust grate and combustion parameters based on fuel characteristics (such as palm shells and mixed solid waste).
Q4.Is overseas after-sales service guaranteed?
A4.Our multilingual team provides remote guidance, stocking equipment parts for key markets, and responding within 1 hours.
Q5.Are there any partnership options?
A5. We support direct equipment sales, EPC (engineered-construction) contracting, and technology licensing for localized production.
