High quality low-carbon steel/cast iron biomass pellet fuel lightweight chain grate active grate


Material:	low-carbon steel,cast iron
Availability:

Quantity:

Inquire Add to Basket

Model:
200，220，300mm
Brand:
JG
Code:
004

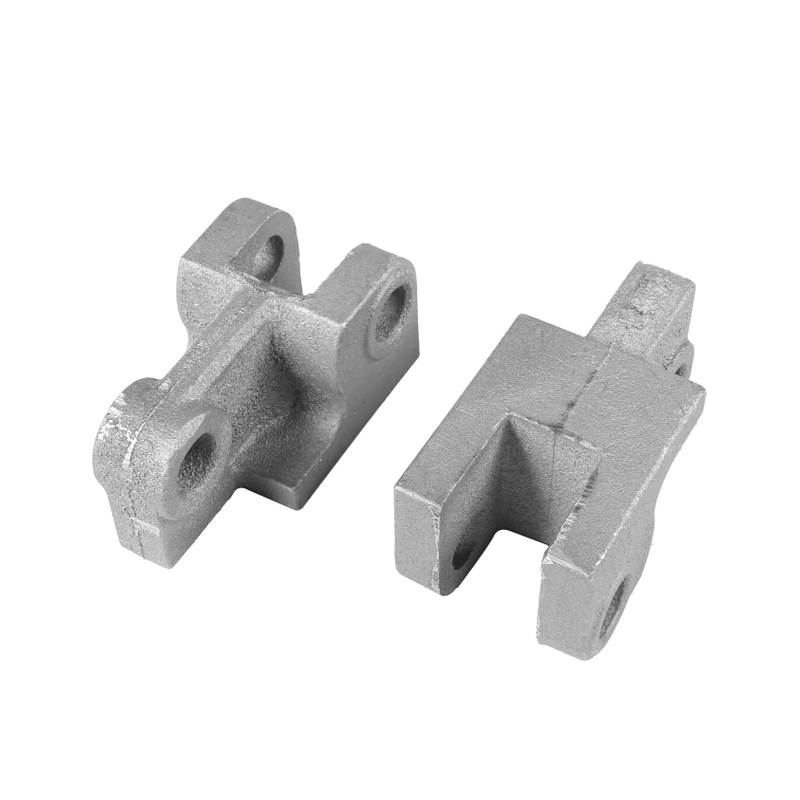

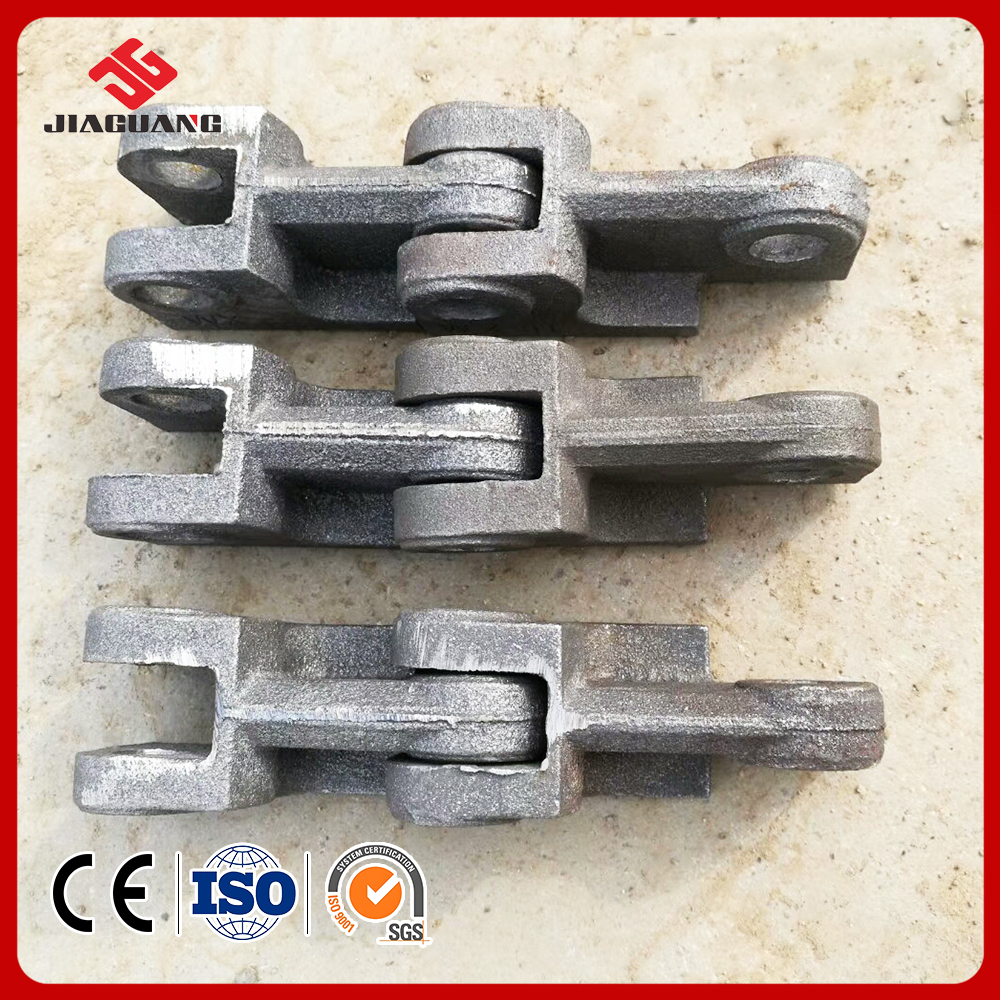

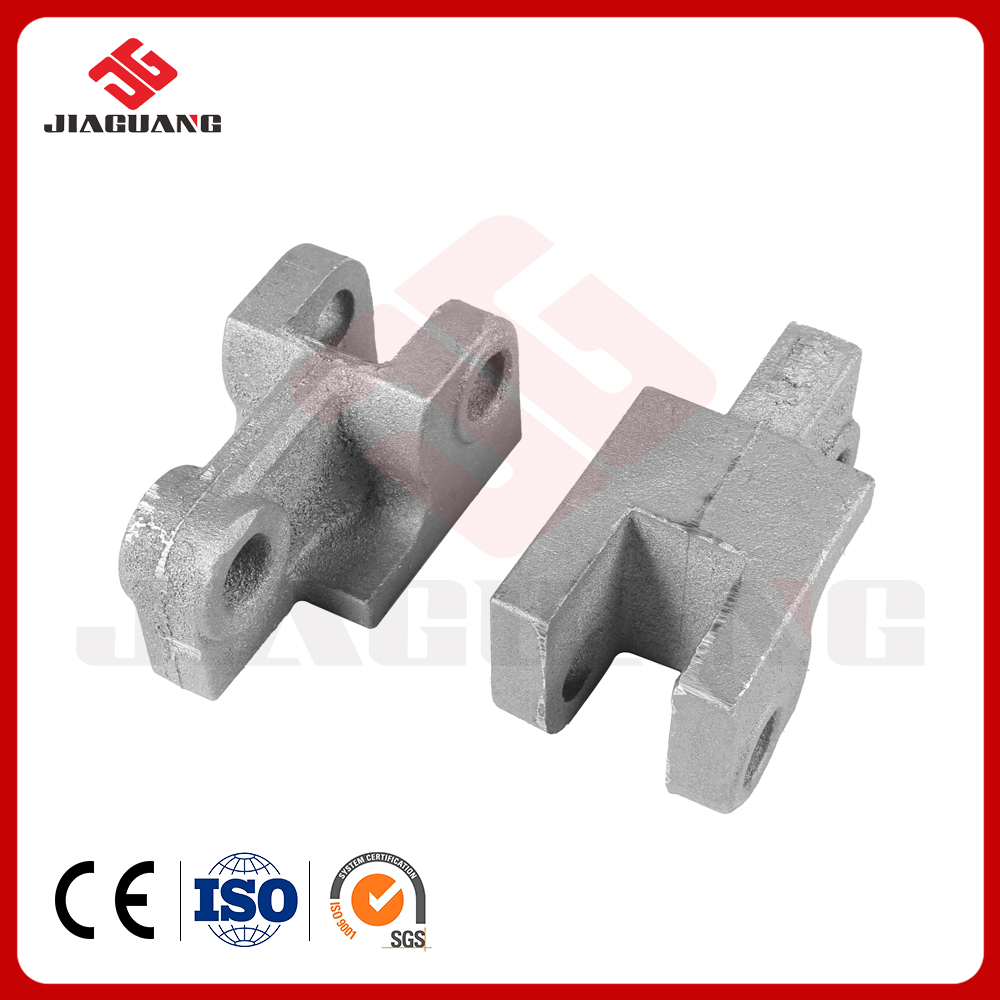

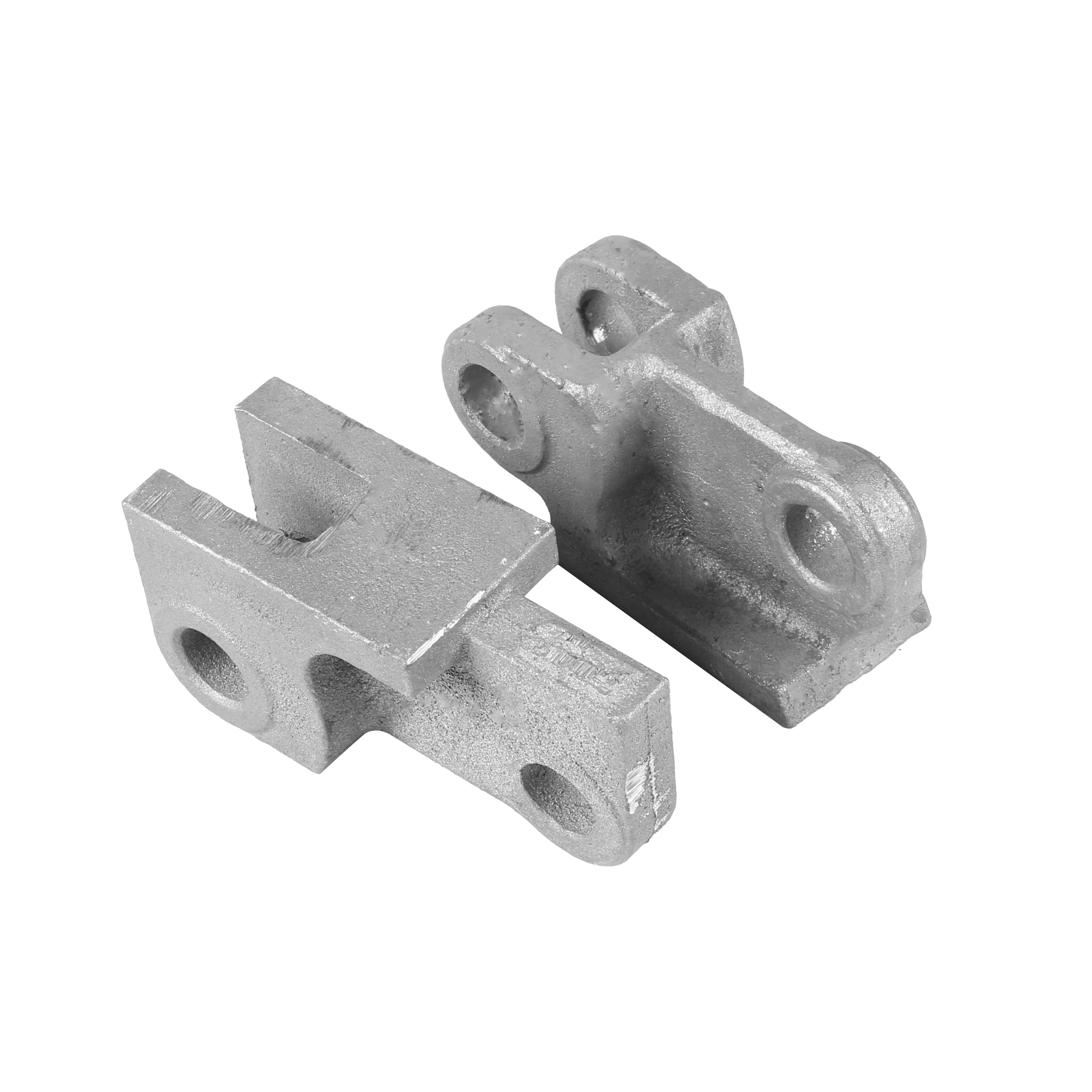

Boiler parts active grate is the key component that drives the fuel to move in the furnace. It drives the grate pieces through chains, beams and other structures to realize fuel transportation and turning. According to the structure, it can be divided into scale type, beam type, chain belt type, etc. The material includes heat-resistant cast iron, alloy steel, etc., with high temperature resistance and wear resistance. It is mainly used in industrial or power station boilers to make the fuel burn evenly and improve thermal efficiency. It is the core transmission component to ensure the stable operation of the boiler.

Product Description

Product Description
主动炉排主图

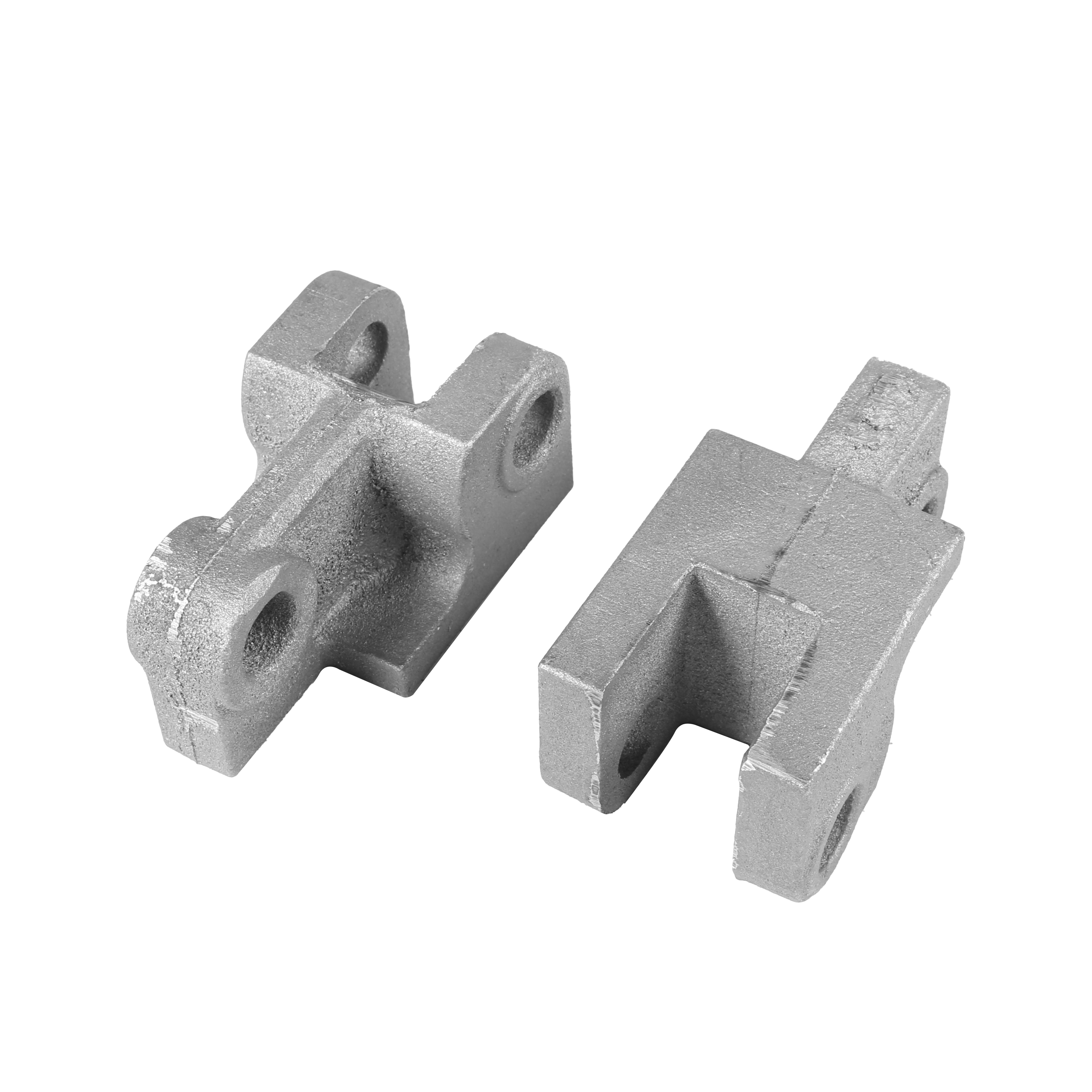

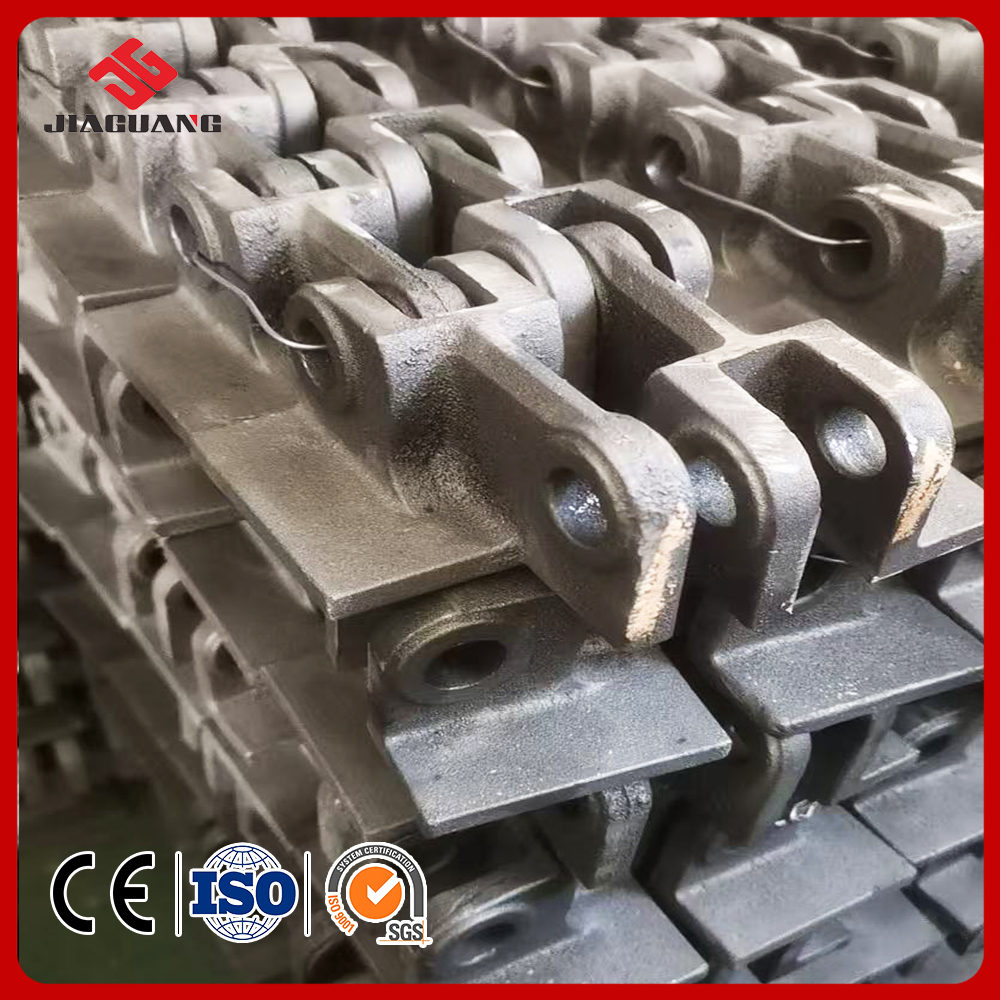

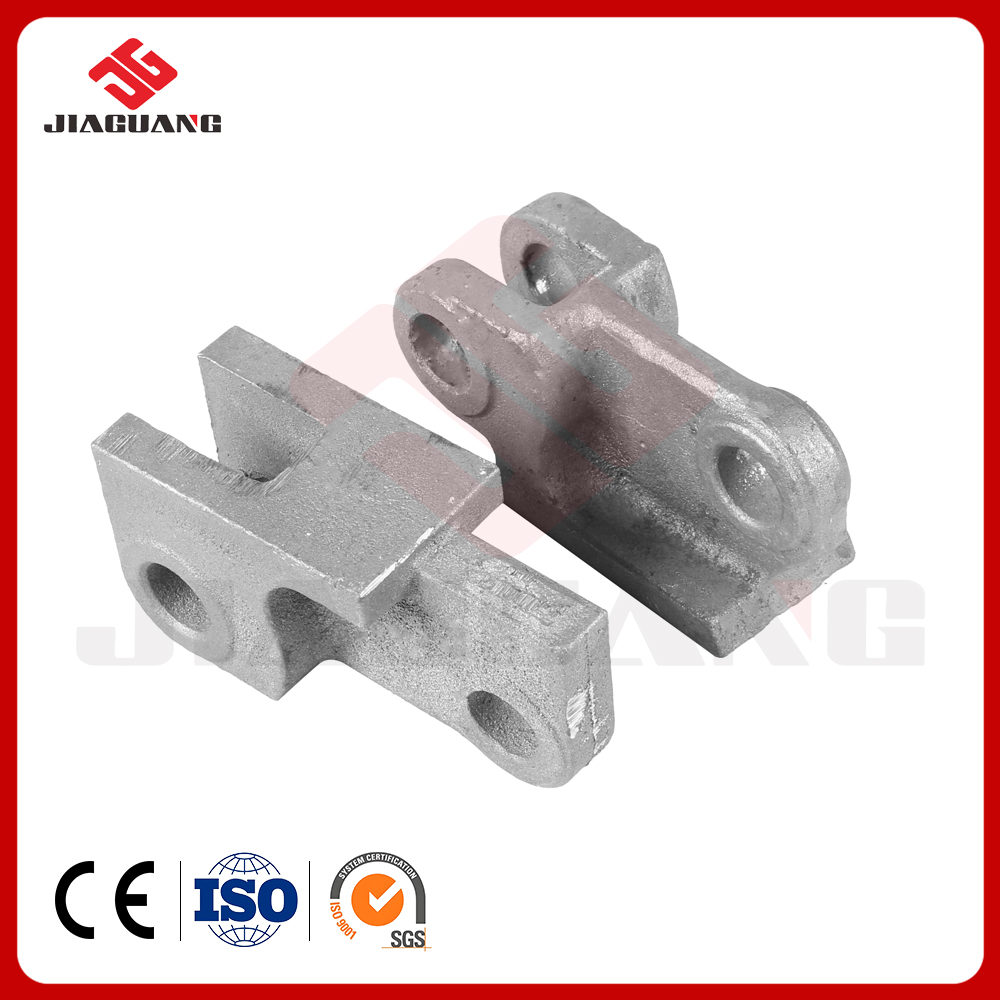

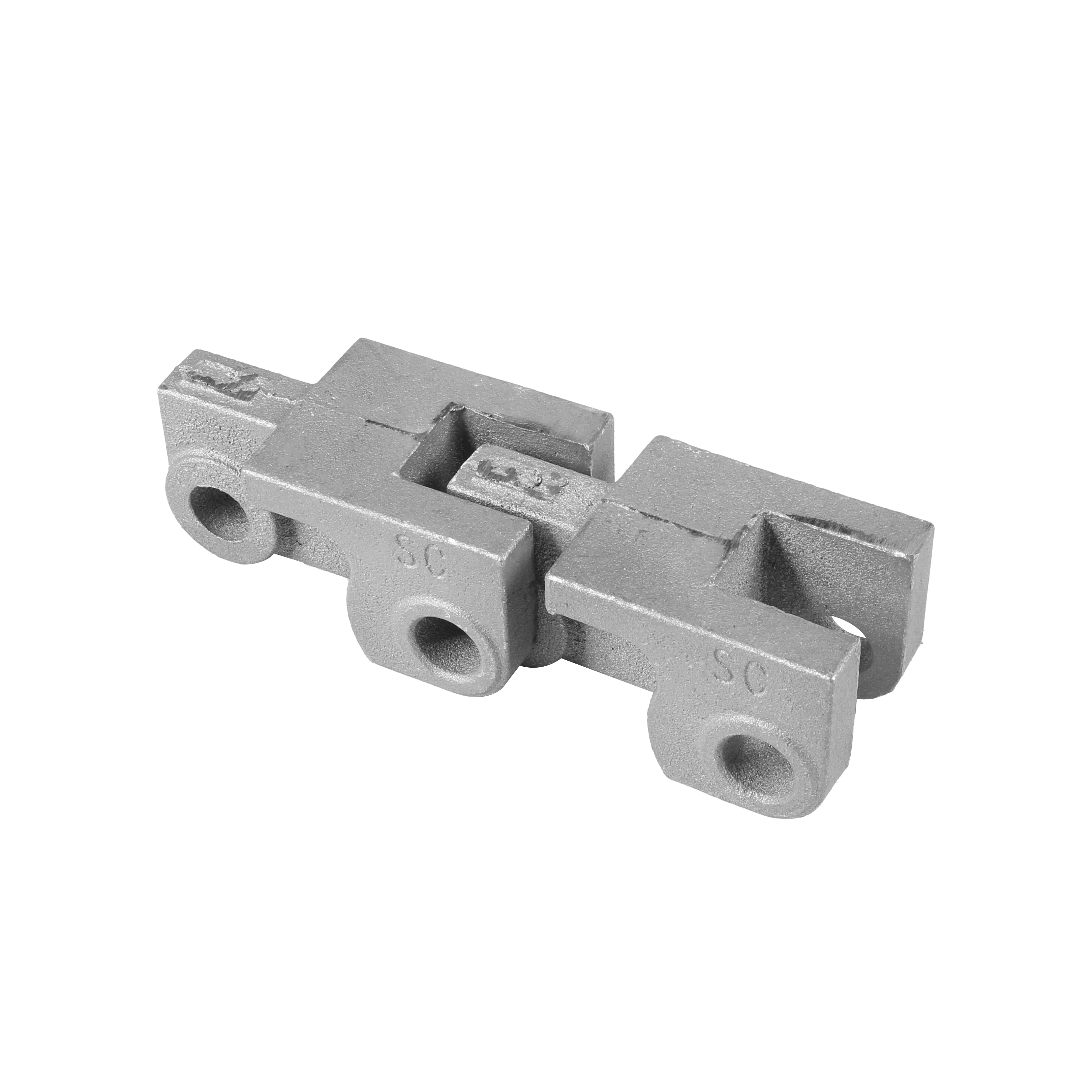

The active grate is the core transmission component of the boiler combustion system. It is mainly used in chain grates, beam grates and scale grates. It bears the role of transmitting power, supporting the fuel layer and optimizing combustion efficiency. The design combines high-strength materials and precision structures to ensure operation under high temperature and high load conditions. It is widely used in industrial boilers, boilers, garbage fire protection and material fuel boilers.

Material	Grey cast iron, ductile iron, heat-resistant alloy
Surface Treatment	Natural, spray painted
Size	Customized size
Heat-resistant	550-1200 degrees
Type	Casting or according to your requirements
Standard	GB、JIS、AISI、ASTM、SAE、EN、DIN
Certificate	ISO9001

Company Profile

Shandong Jiaguang International Co., Ltd. is deeply engaged in the field of boilers, and has become a benchmark enterprise in the industry with profound technical expertise and unremitting innovation pursuit. We focus on providing comprehensive boiler solutions for multiple industries such as chemical, power generation, and heating, and are committed to promoting efficient development of various industries with high-quality products and services.
1. Advanced production qualifications: The company holds a national A-level boiler manufacturing license, as well as a Level 3 pressure vessel design and manufacturing license and Level 3 manufacturing license. This series of qualifications proves the company's strong strength and excellent technical level in the field of boiler manufacturing, providing a solid guarantee for the high-quality production of products.
2. Strong R&D team: We have a R&D team of 376 engineering and technical personnel, including 47 senior engineers, with strong team technical advantages.
3. Excellent product performance: The company always regards product quality as its lifeline and strictly controls every link from raw material procurement to product delivery. In boiler design, various factors such as thermal efficiency, environmental performance, and safety performance are fully considered, and advanced technologies and processes are adopted to ensure efficient, energy-saving, environmentally friendly, and safe and stable operation of the product. Reducing pollutant emissions, saving operating costs for customers, and making positive contributions to environmental protection.

4. Comprehensive pre-sales service: Deeply understand customer needs, provide professional technical consultation and solution design for customers. We have established a comprehensive production management and quality control system to ensure timely and high-quality delivery of products. During the production process, communicate the progress with customers in a timely manner, answer their questions, and keep them informed of the order status at all times.

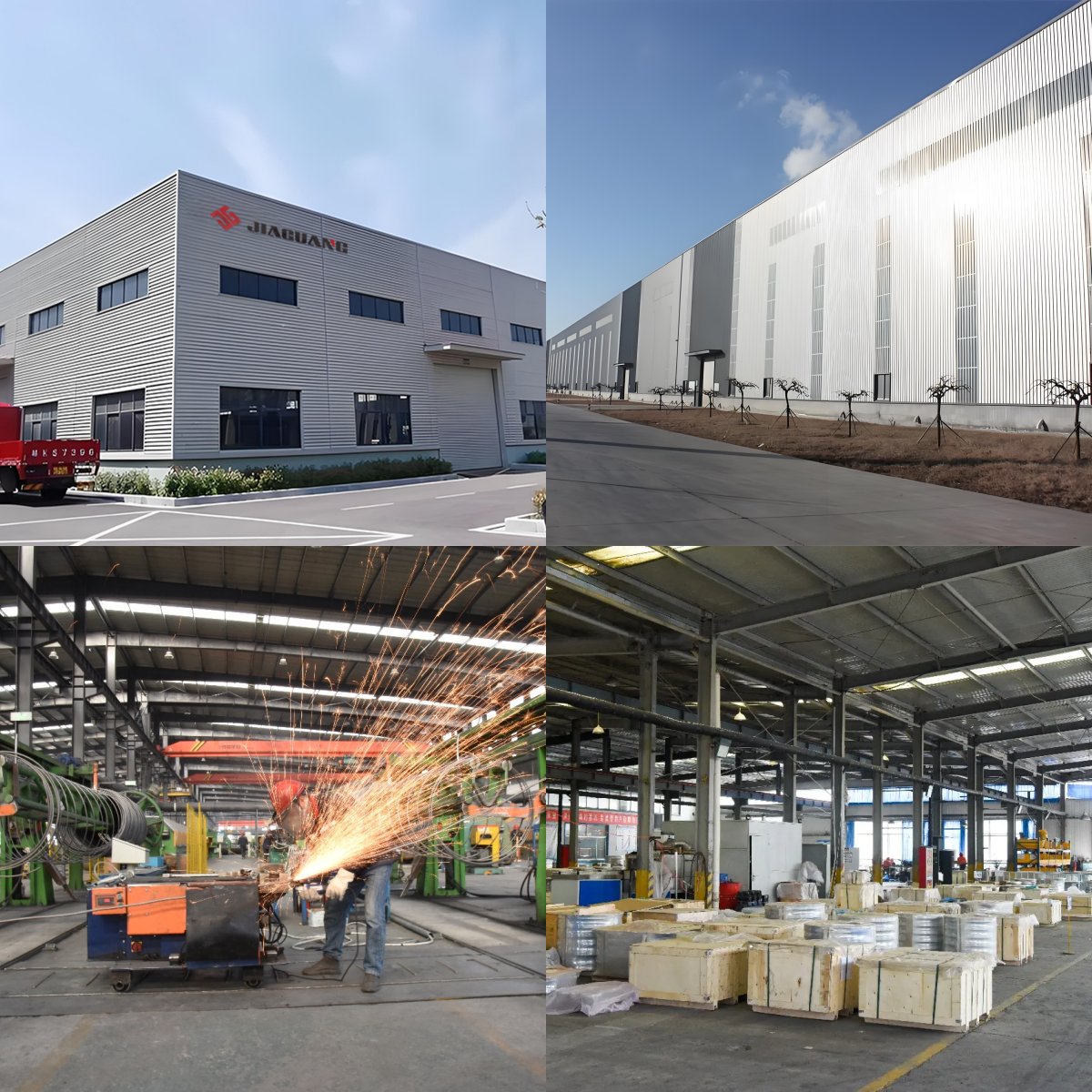

公司场景图1

Certificate
证书图片

Product packaging

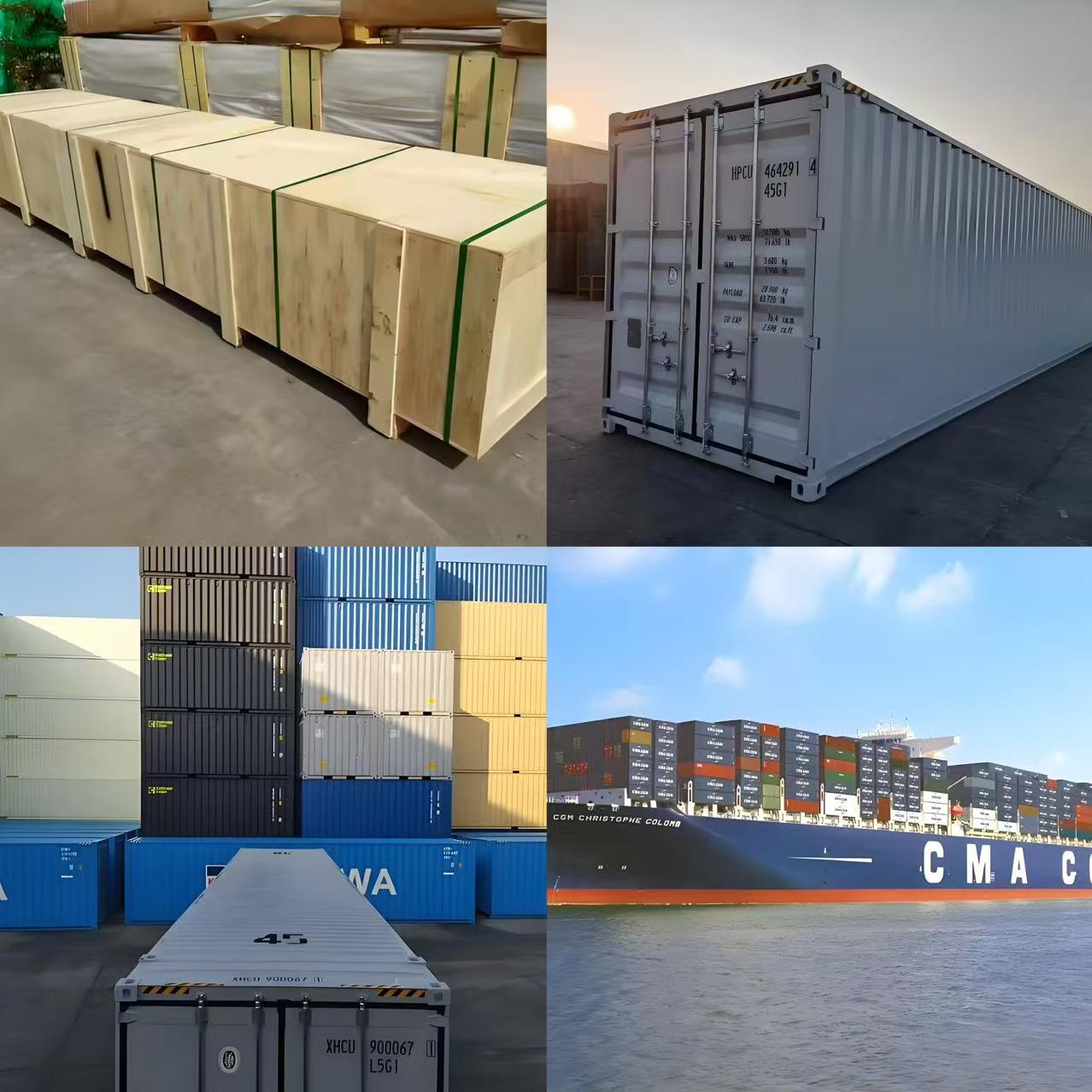

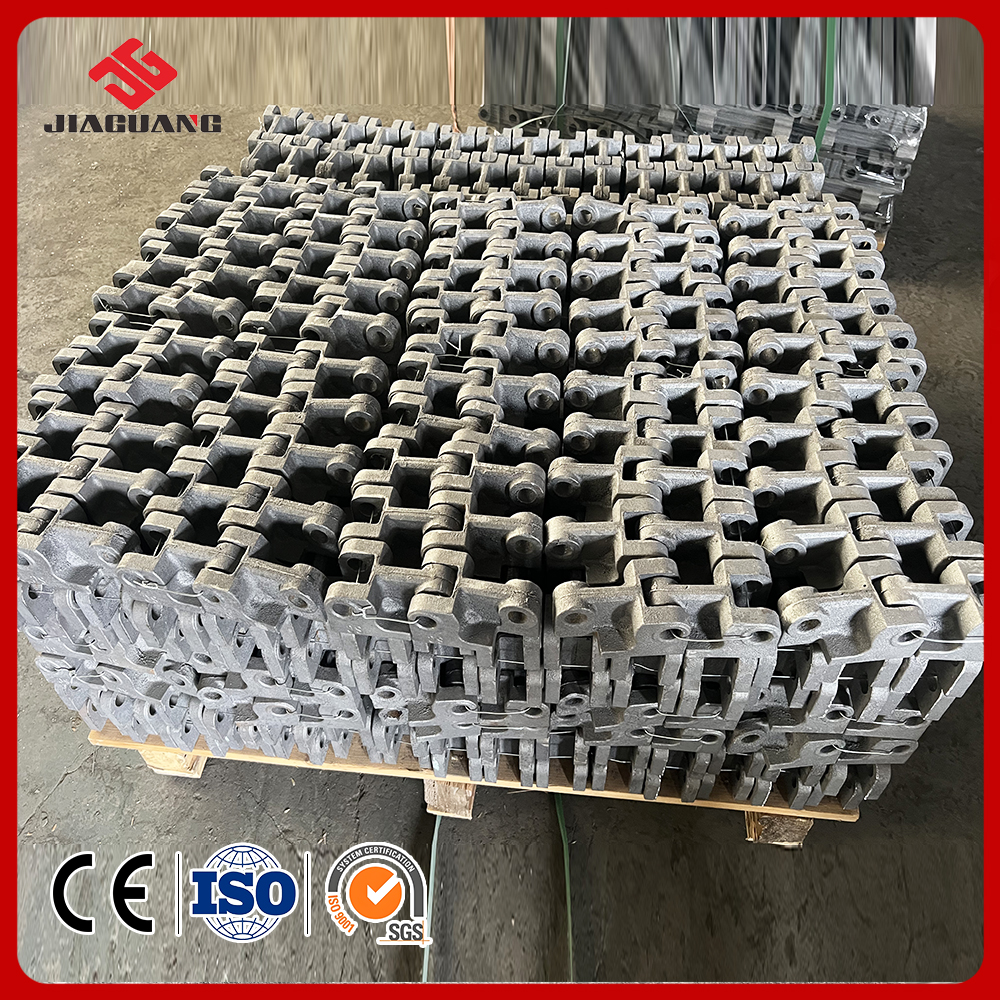

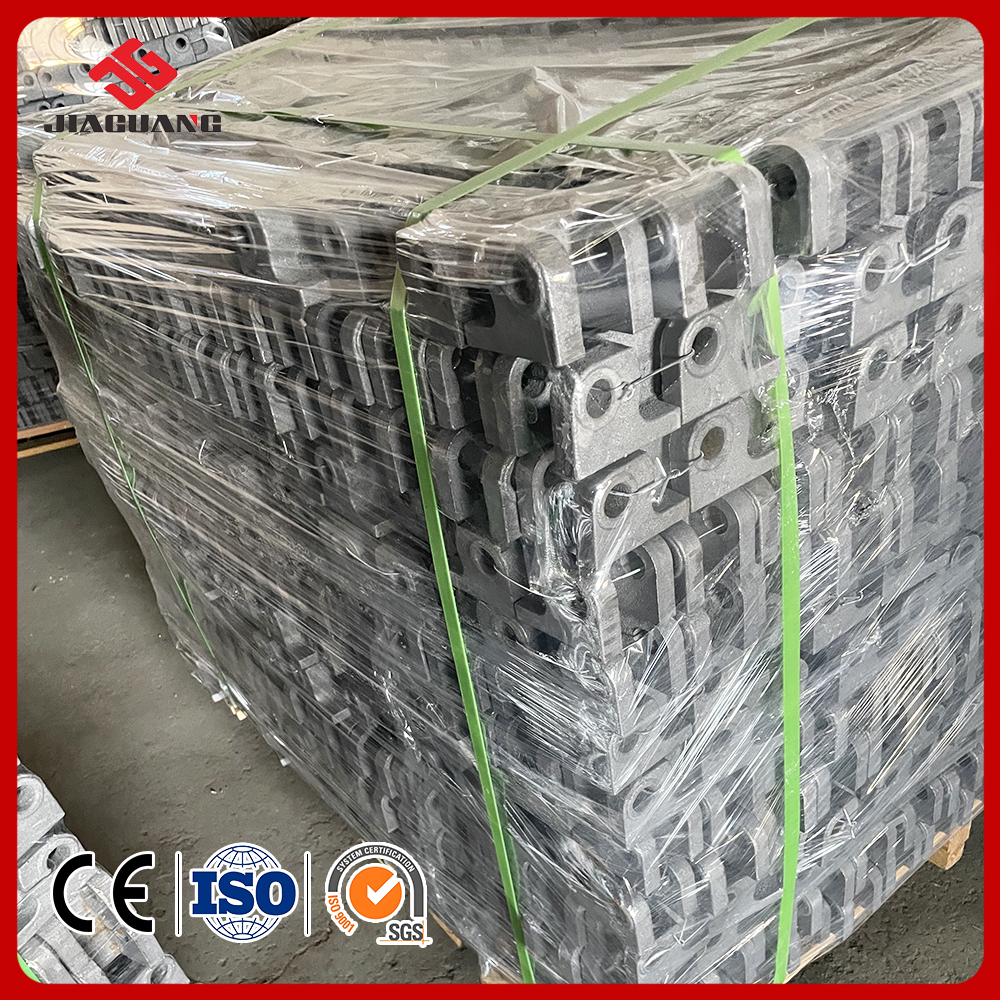

Careful packaging: Active grates are packed in sturdy wooden boxes, and foam, bubble film and other cushioning materials are used inside to provide all-round protection for the grate pieces and key components to ensure that they are not damaged by collision or extrusion during transportation.

Transport service

Railway transportation: When the transportation distance is long and the quantity of goods is large, railway transportation is a more economical way. Railway transportation has the advantages of large transportation volume, fast speed, and relatively low transportation costs. The packaged active grate can be loaded onto railway freight cars for transportation. During the loading and unloading process, specialized railway loading and unloading equipment is required to ensure the safe loading and unloading of goods.

运输照片

联系我们

FAQ
Q1. who are we?

A:Shandong Jiaguang International Trade Co., Ltd. is a professional company engaged in the casting of boiler accessories. Our company has more than thirty years of manufacturing experience and has passed ISO9001 international quality system certification, CE certification
Q2. how can we guarantee quality?
A:Always a pre-production sample before mass
production;Always final Inspection before shipment.
Q3: Are you trading company or manufacturer?
A: We are professionally manufacturer in Shandong China and own ourself Punching workshop,Forging workshop & Casting-workshop, warmly welcome to visit us.
Q4: Do you provide samples ? is it free or extra ?
A: of course, for potentioal customer, UNIISO sample is free but customer is duty for logistic fee.
Q5: What is your terms of payment ?
A: 30%T/T Deposit and 70 % T/T before shipment after inspect well
Q6: What is your advantages?
A:1. Manufacturer, with most competitive price and good quality.
2. technical engineers group offer the best support to you.
