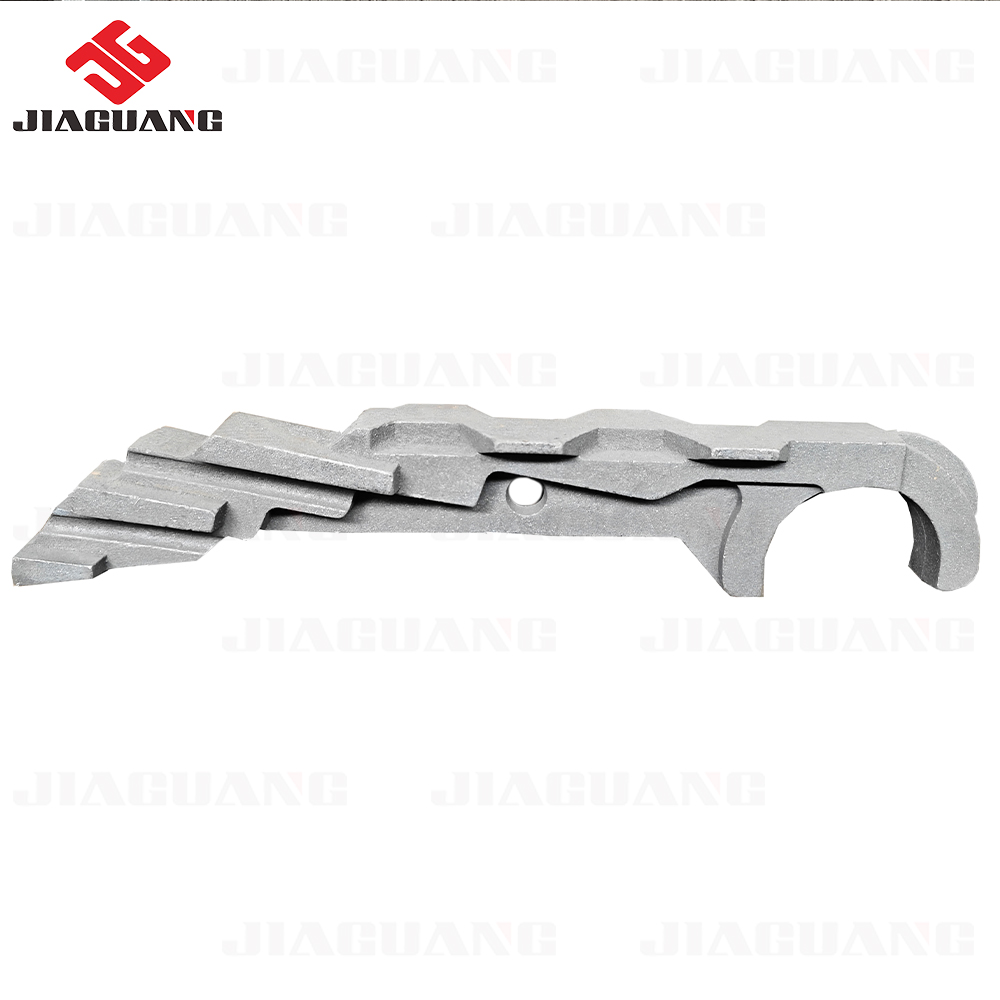

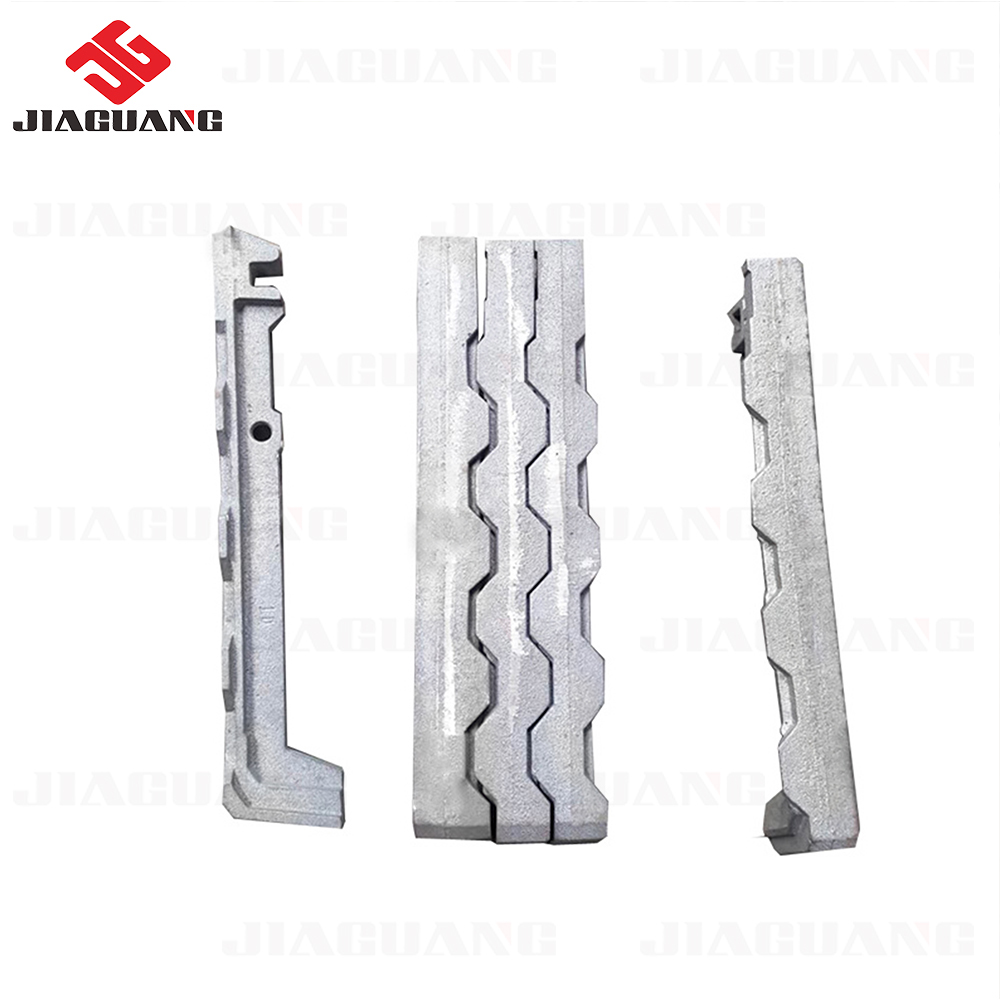

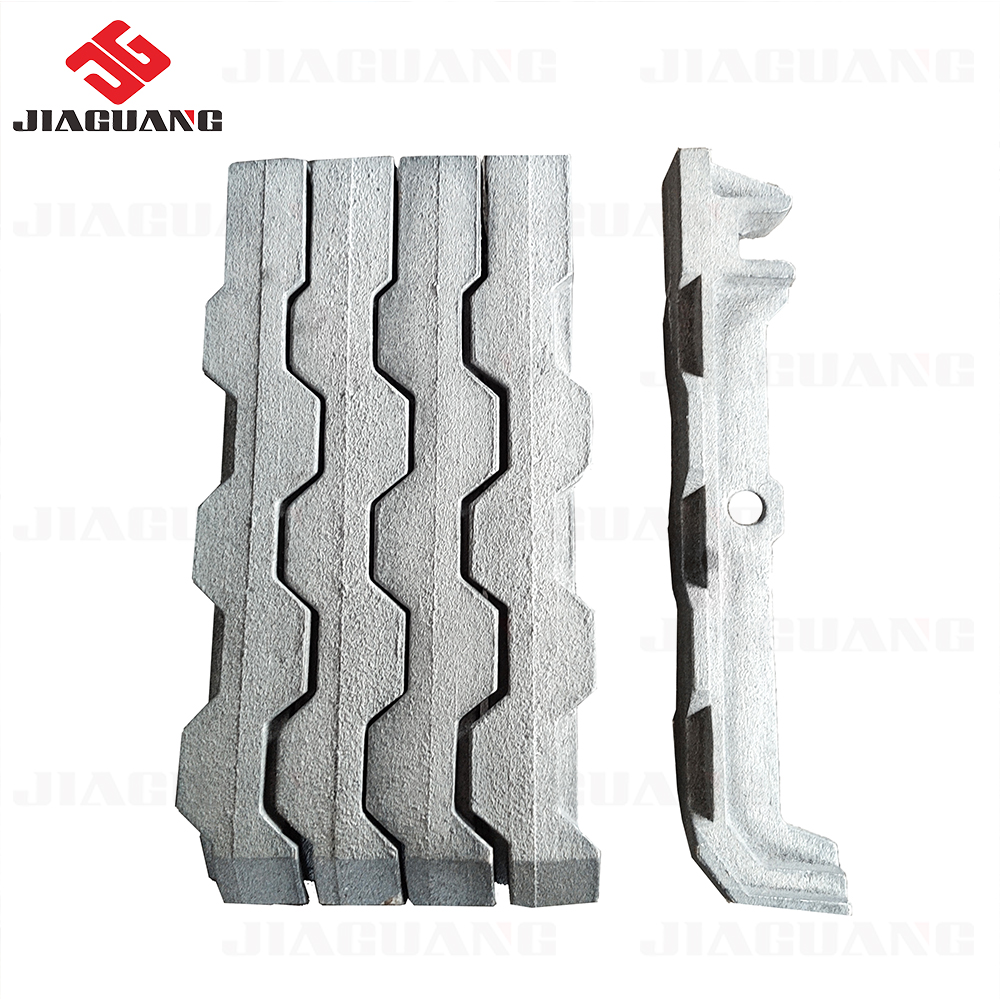

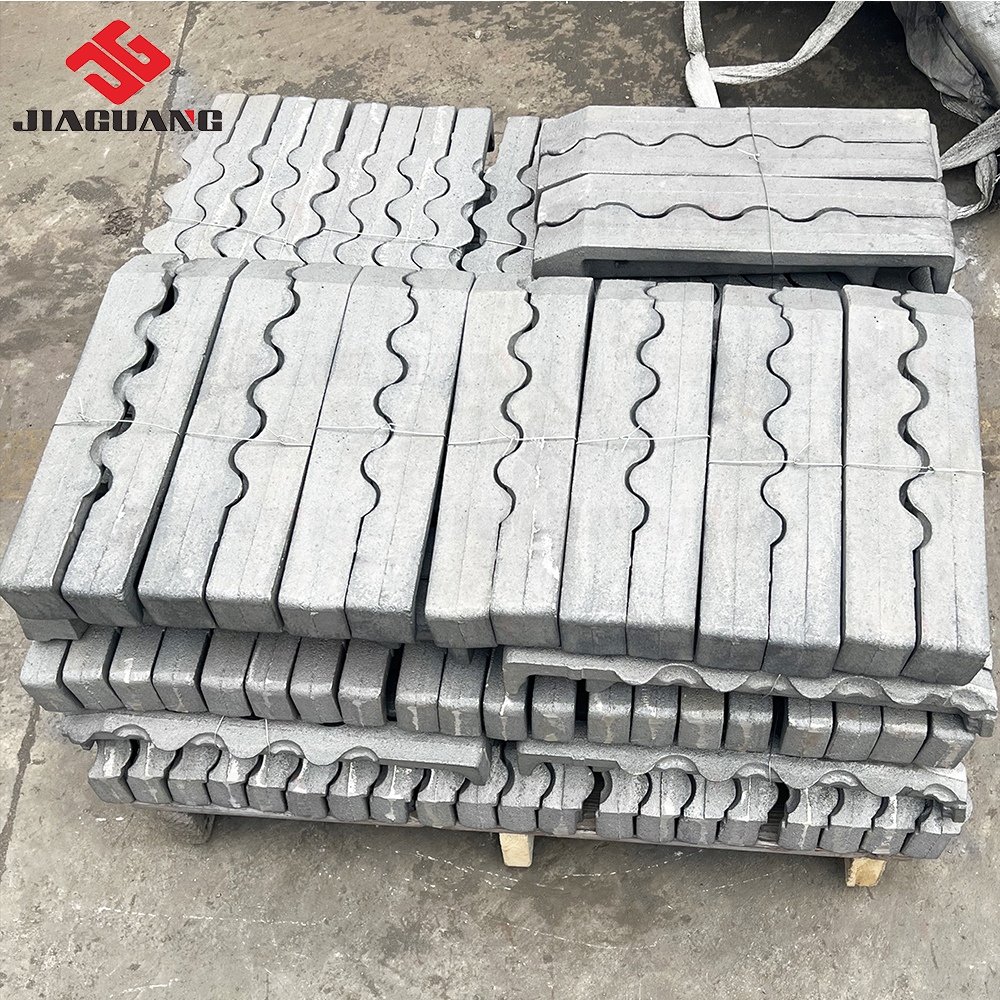

The reciprocating grate is the core combustion equipment of small and medium-sized industrial boilers. It adopts a stepped overlapping fixed/movable grate structure, designed specifically for low-quality coal and biomass fuels, and has fuel self disturbance and staged combustion characteristics. Its core modules include activity framework, eccentric wheel transmission system, segmented air supply device, etc., supporting automated combustion control.
Arrangement of grate plates | The fixed piece and the movable piece overlap in a stepped manner, forming a 15 ° -20 ° inclined structure. The movable piece has a stroke of 30-100mm and a frequency of 1-5 times/minute. It supports variable frequency speed regulation |
Transmission system | Electric motor driven eccentric wheel+push-pull rod |
Fuel adaptability | Suitable for lignite (calorific value 12-20MJ/kg), biomass pellets (moisture content ≤ 35%), and mixed household waste (no need for pre classification) |
Combustion Efficiency | Burnout rate ≥ 85% (poor quality coal), carbon content in ash ≤ 18%, secondary oxygen supply technology reduces CO emissions to below 50mg/m³ |
Material of grate plate | The standard version uses high chromium cast iron (HRC ≥ 55, temperature resistance 1100 ℃), while the customized version has been upgraded to Cr25% -30% heat-resistant alloy steel, with a 40% increase in creep resistance |
Application scenarios | Biomass boilers, waste incineration |
Company Profile
Shandong Jiaguang International is a high-tech enterprise with 30 years of experience in boiler component manufacturing. It has always adhered to the integrated development of R&D, production, sales and technical services. The company has a modern intelligent production base and a professional engineering team of more than 100 people, forming four core product portfolios: high temperature resistant grate system (including active, passive, scale type, reciprocating type), intelligent chain transmission components (including chain rods, scraper conveyor components and sinking scraper chains), precision gas cap devices (boiler gas caps and grates), special pipe solutions (boiler tubes, square tubes and pressure gears), forming a complete boiler component ecosystem.
The company is well-known throughout the country for its excellent product quality and maintains strategic partnerships with the top 15 industrial boiler manufacturers in China, including Harbin Boiler Plant, Dongfang Electric Group, Shanghai Boiler Plant, Jinan Boiler Group, Hangzhou Boiler Group, etc. The company has passed ISO9001 international quality management system certification, CE, SGS certification, and has formed a global service network covering eight major industries such as power generation, thermal energy, papermaking, and chemical industry. The products have been successfully exported to more than 30 countries and regions in Southeast Asia, Central Asia, Oceania, Africa, etc.
As a pioneer in technological innovation in the industry, Shandong Jiaguang International continues to provide full life cycle solutions for global industrial boilers, power plant boilers, and civil heating systems. By continuously improving its R&D capabilities and service system, the company is steadily moving towards becoming a global boiler parts technology benchmark and professional solution provider, and is committed to creating outstanding value for global customers by improving service experience.

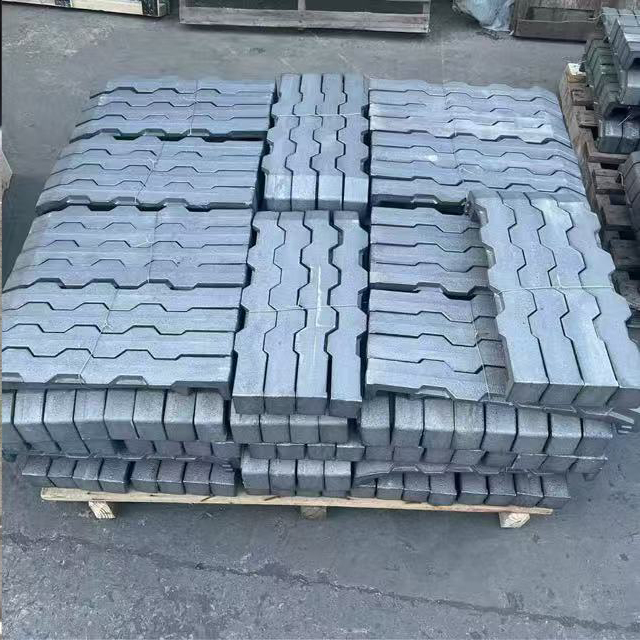

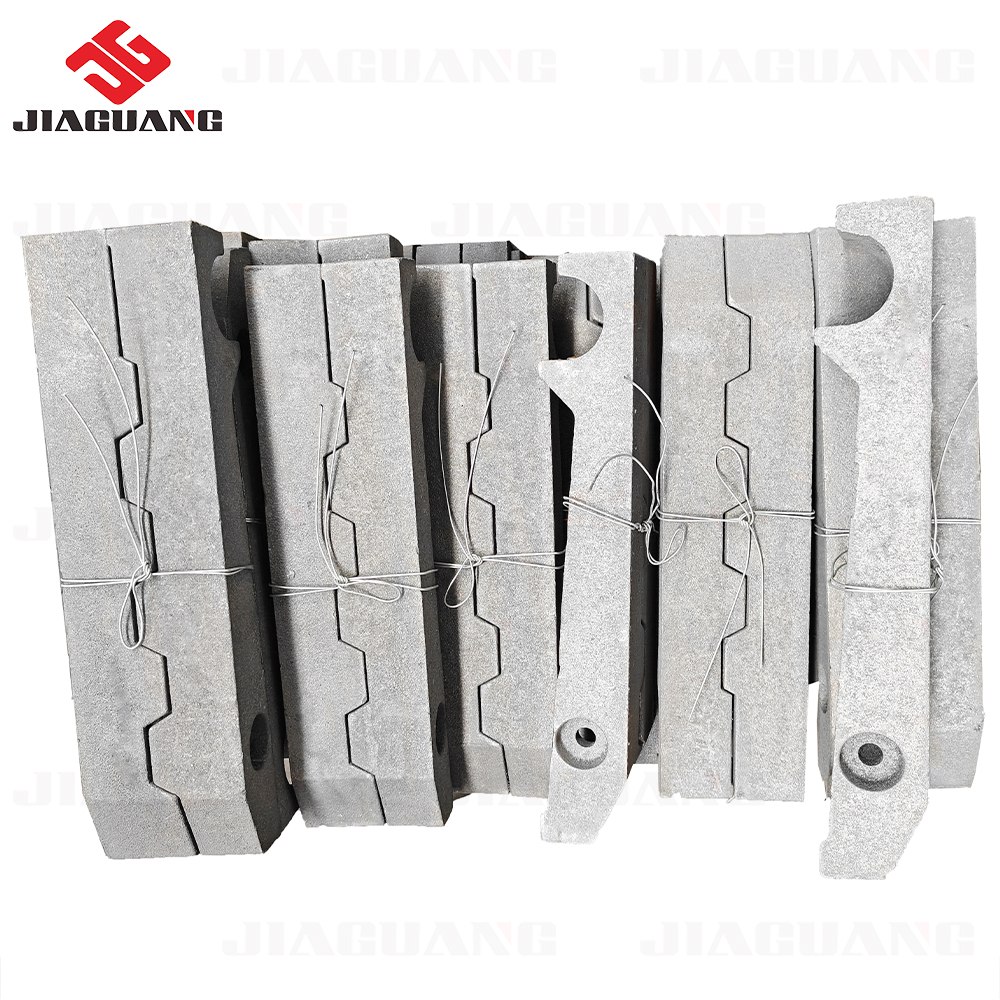

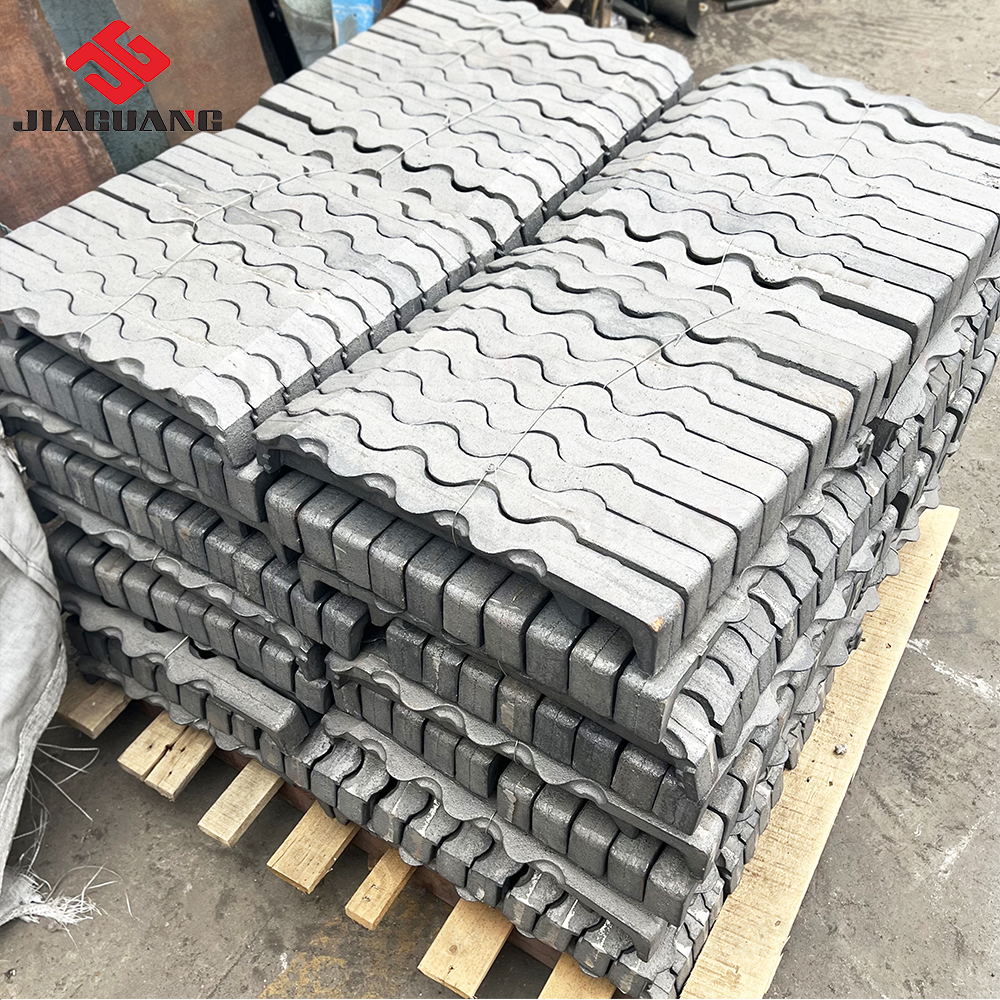

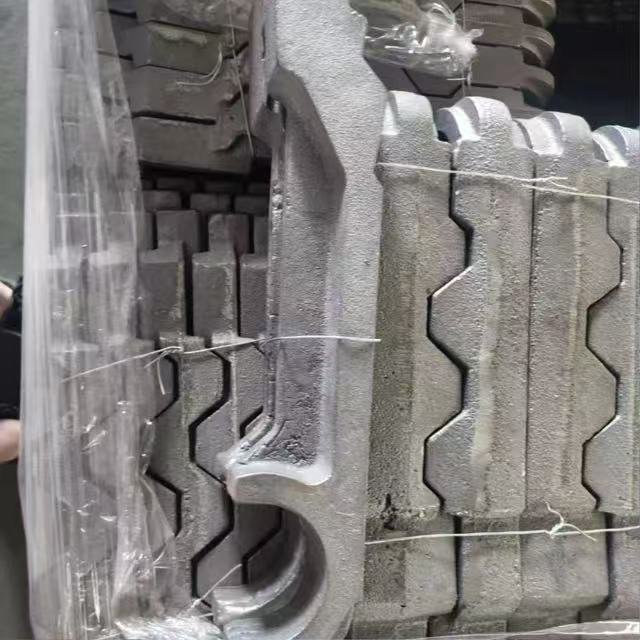

Product packaging
1. Packaging Design
Modular split packaging
The core components such as grate plates, transmission mechanisms, and cooling systems are packaged in independent rust proof and sealed packaging, supporting flexible combination according to orders. Double layer galvanized steel box+shockproof foam lining is used for single grate plate to reduce the risk of transportation collision.
Rust prevention and sealing treatment
The surface of the grate plate is pre coated with anti rust oil (salt spray resistance ≥ 500 hours), and key transmission components are sealed with vacuum plastic to prevent moisture.
Install a silicone sealing cover at the interface of the water-cooled circulation pipeline to prevent foreign objects from entering.
Heavy equipment reinforcement plan
The overall framework adopts a steel wood composite box (with a load-bearing capacity of ≥ 5 tons), and the bottom is welded with channel steel pallets suitable for forklift loading and unloading.
2. Transportation management
Transportation mode
Domestic orders: Mainly for land transportation (9.6-meter/13.5-meter flatbed trucks), with a maximum single load capacity of 20 tons, compatible with standard pallet sizes (1200mm × 1000mm).
Timeframe and Cost
Regular orders: Domestic delivery (including packaging quality inspection and loading) shall be completed within 15 days after leaving the factory.
Risk control
Real time monitoring of temperature and humidity during transportation (requires environmental humidity ≤ 70%, temperature -20 ℃~50 ℃).
Provide unpacking and quality inspection services upon arrival. If deformation/corrosion is found, spare parts replacement can be applied for within 48 hours.
FAQ
Q1. Why choose us?
A: We are a modern enterprise specialized in manufacturing and selling.The company has been established for thirty years.We have a lot of experience and good reputation.Every client will be served with our heart.
Q2. how can we guarantee quality?
A: Always a pre-production sample before mass
production;Always final Inspection before shipment.
Q3: How to order?
A: Inquiry-RFQ-Quotation-Sales Order-Payment-Manufacture-Quality Inspection-Package-Delivery
Q4: How about the packaging?
A: Standard export wooden case,iron frame and other seaworthy packing.
Q5: What is your terms of payment ?
A: 30%T/T Deposit and 70 % T/T before shipment after inspect well
Q6: What is your advantages?
A: 1. Manufacturer, with most competitive price and good quality. 2. technical engineers group offer the best support to you.
