| rated evaporation capacity: | |
|---|---|
| Rated steam temperature: | |
| Quantity: | |
Production description
The SZL hot water boiler is a horizontal double-drum, vertically mounted, quick-install or assembled water tube chain grate boiler. It consists of the main heating surface (upper large part) and the combustion equipment (lower large part). It can fully utilize the thermal energy of the fuel, has high combustion efficiency and high thermal efficiency, and can be equipped with an advanced automatic control system. It is widely used in heating, chemical, food, medicine and other industries.
| Model item | SZL6 | SZL8 | SZL10 | SZL15 | SZL20 | SZL25 |
| Rated evaporation capacity(t/h) | 6 | 8 | 10 | 15 | 20 | 25 |
| Rated pressure( Mpa) | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 |
| Rated steam tmperature(ºC) | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 |
| Feed water temperature (ºC) | 20 | 20 | 20 | 20 | 20 | 20 |
| Effective area of garte (M3) | 7.52 | 10.25 | 11.8 | 18 | 23.2 | 29.8 |
| Fuel type | Coal, Biomass pellet, jute, Palm kernel shell | |||||
| Fuel Consumption(kg/h) | ~880 | ~1160 | ~1450 | ~2200 | ~2900 | ~3650 |
Exhaust fluegas temperature(ºC) | ~165 | ~165 | ~165 | ~165 | ~165 | ~165 |
| Themal efficiency(%) | ~80 | ~80 | ~80 | ~80 | ~80 | ~80 |
| Weight of biggest part fotransportation (t) | 22.5 | 25 | 28 | 30 | 35 | 40 |

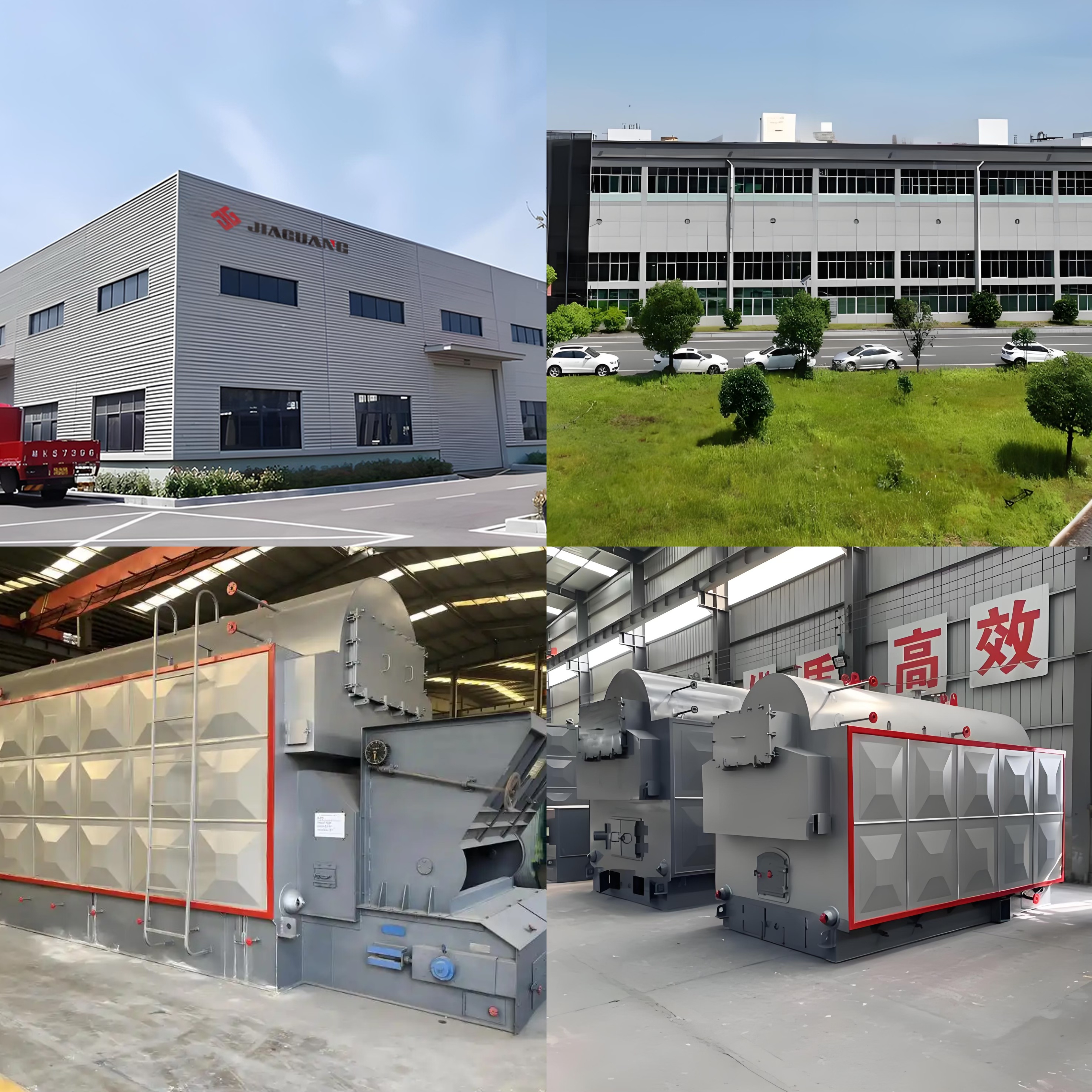

Company Profile
Shandong Jiaguang International has been deeply engaged in the boiler industry for over 20 years and has become a trusted supplier of high-quality boilers. Leveraging advanced manufacturing capabilities, strong R&D expertise, and a commitment to excellence, we serve a wide range of industries, including construction, automotive, manufacturing, and infrastructure. Furthermore, we have become a comprehensive service provider specializing in the design, manufacture, and system solutions of products such as power plant boilers, petrochemical vessels, ship propulsion, environmental protection equipment, power plant auxiliary equipment, nuclear power products, and desalination and water treatment equipment. We are committed to promoting the efficient development of various industries with high-quality products and services.
1. Advanced Production Qualifications: The company holds a national Class A Boiler Manufacturing License, a Class III Pressure Vessel Design and Manufacturing License, and a Class III Manufacturing License. We are equipped with state-of-the-art rolling mills, galvanizing lines, and color coating equipment. We have obtained national certifications such as ISO 9001 for quality management systems, ISO 14001 for environmental management systems, and CE certification.
2. Professional R&D Team: Composed of 286 engineers and technicians (including 52 senior engineers), we continuously innovate, develop new boiler models, and improve production processes. We collaborate with leading research institutions to ensure cutting-edge product performance. 3. Strict Quality Control: From raw material inspection to final product certification, each stage is thoroughly tested. Our products comply with international standards such as ASTM, JIS, and EN, ensuring reliability and consistency.
4. Customized Solutions: We offer custom steel products in a variety of thicknesses, widths, and finishes.
Professional technical support helps customers select the optimal material for their specific application.
5. Global Market Reach: Our products are exported to over 50 countries, serving customers in Asia, Europe, the Americas, and the Middle East. Our efficient logistics network ensures timely delivery and competitive pricing.
6. Commitment to Sustainability:
We prioritize the following environmental responsibilities:
Using energy-saving production technologies. Minimizing waste through recycling programs. Developing environmentally friendly coatings and treatments to reduce our carbon footprint.
Product picture

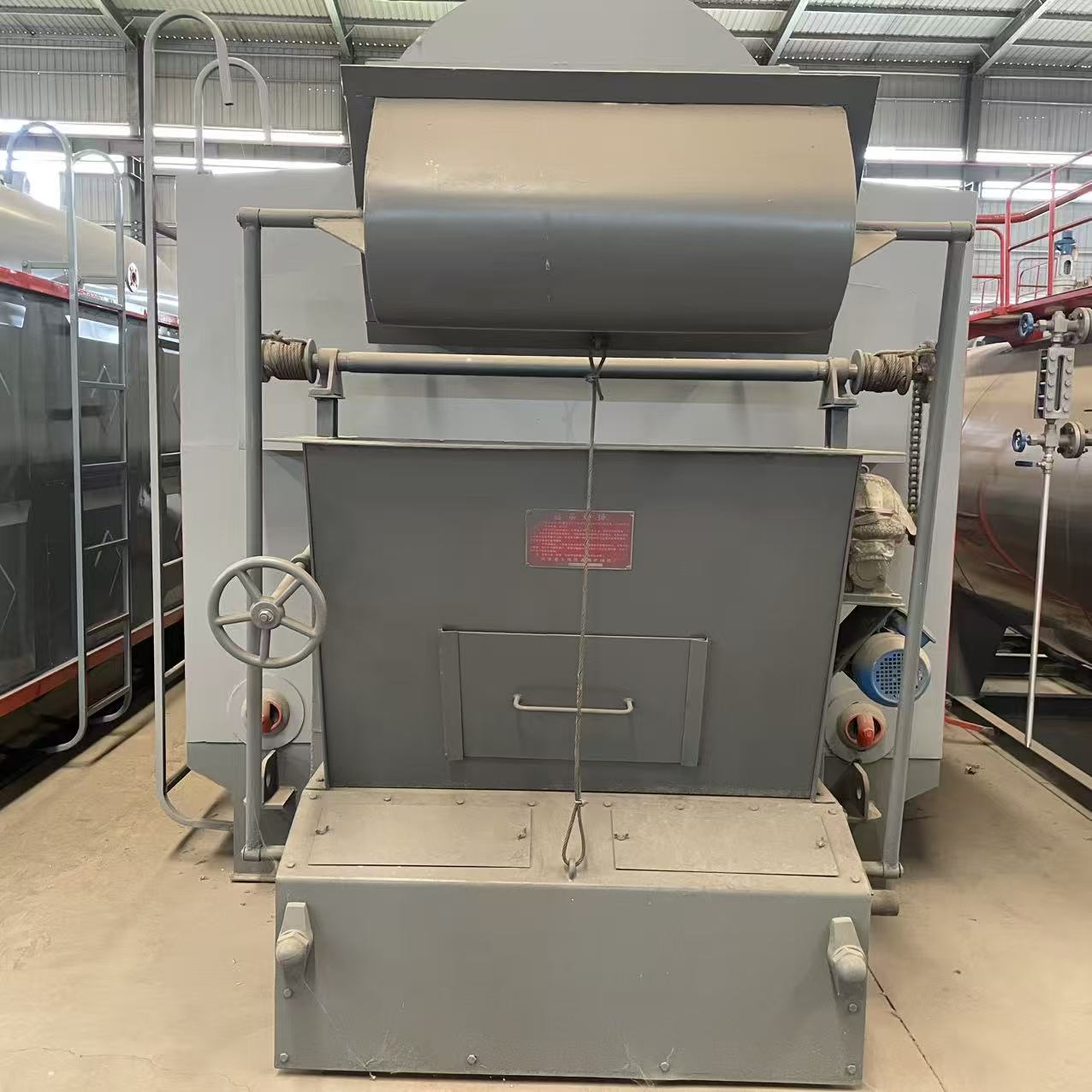

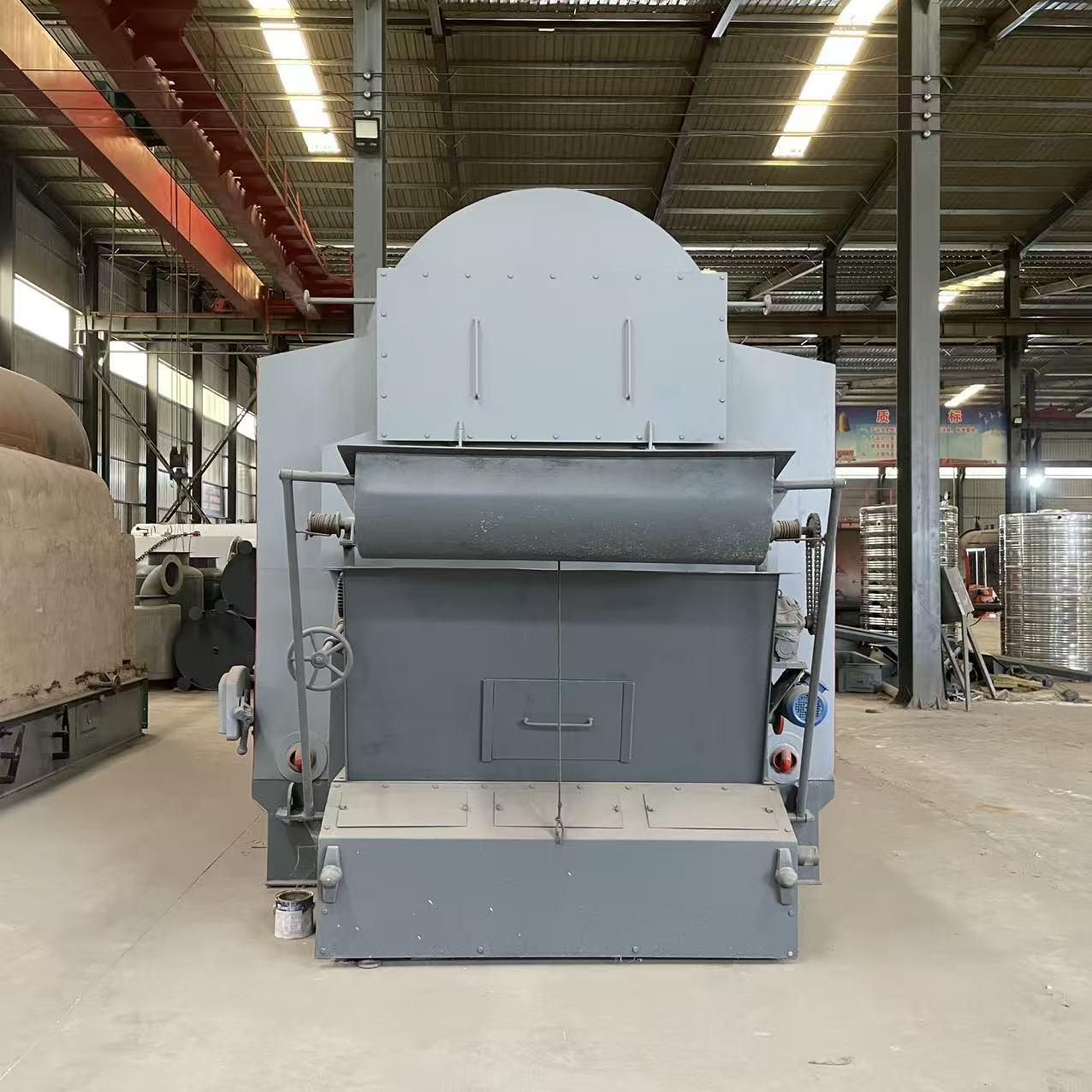

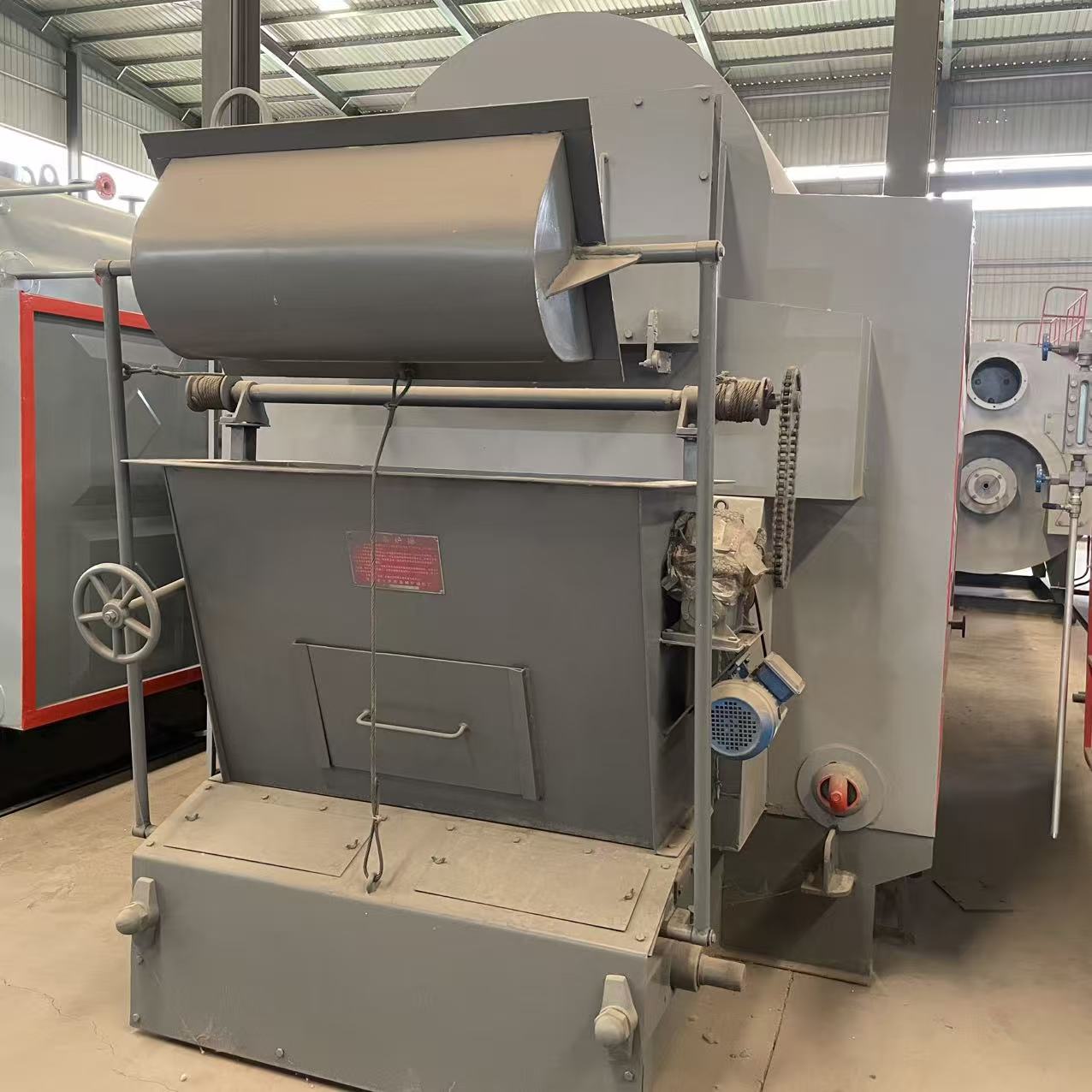

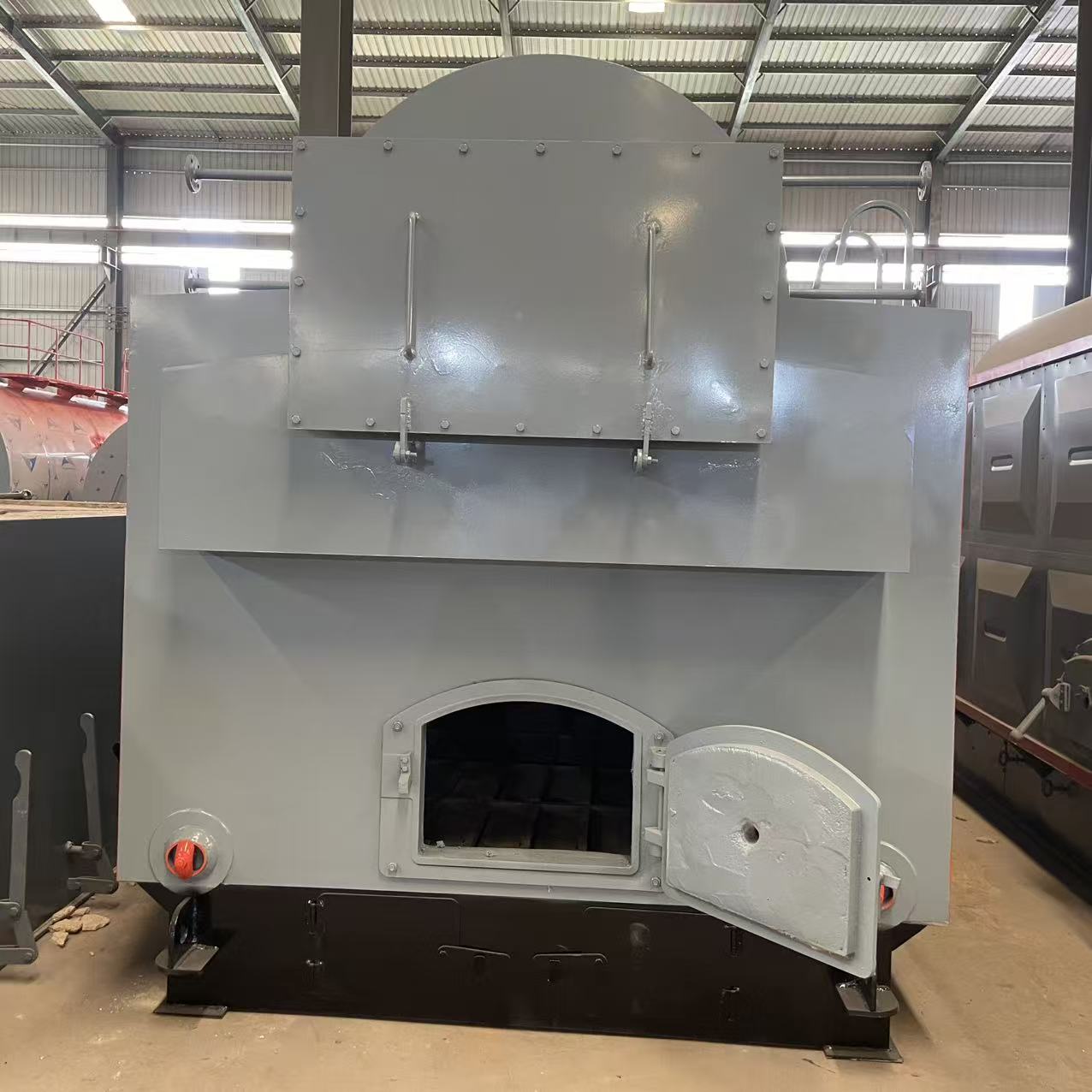

Product physical image1

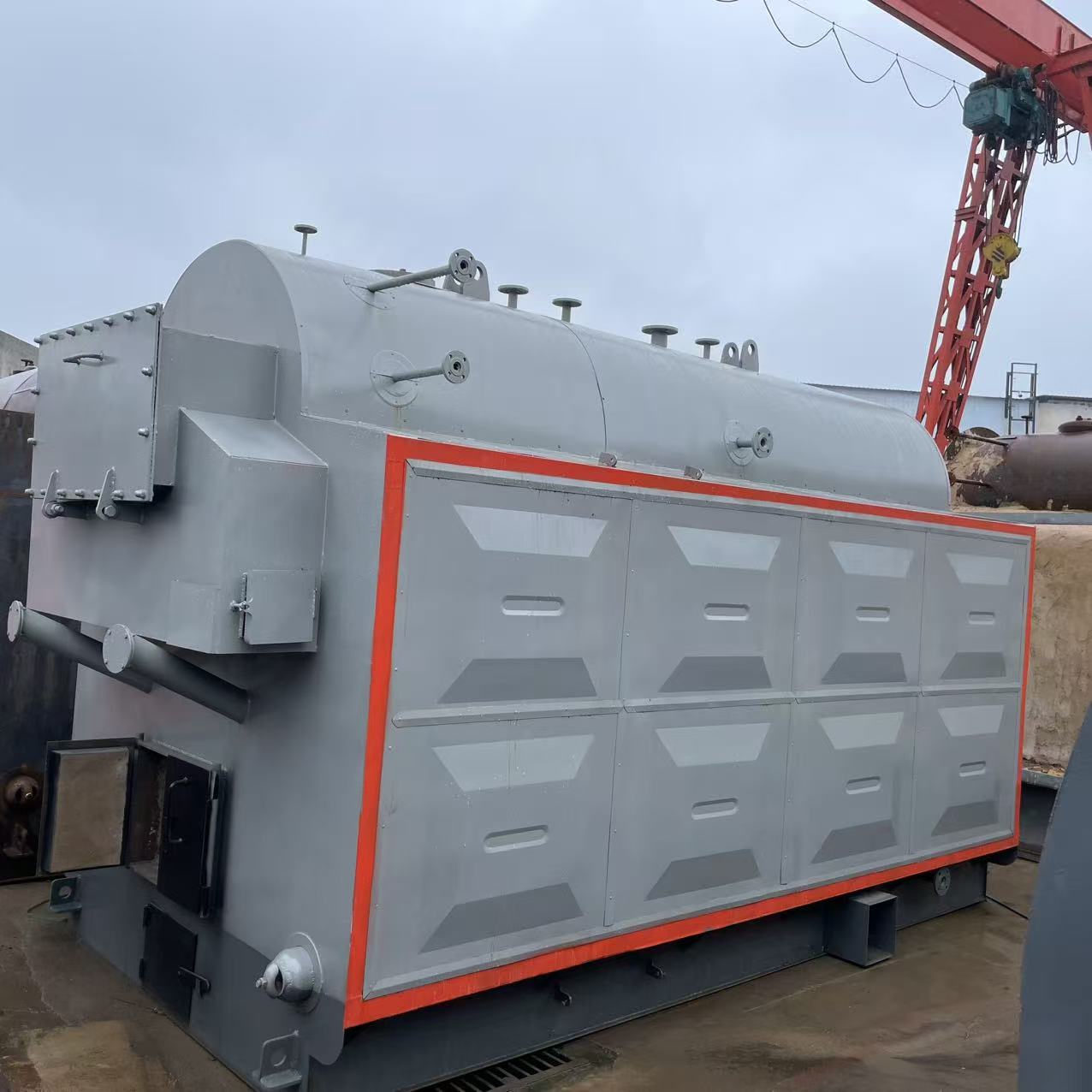

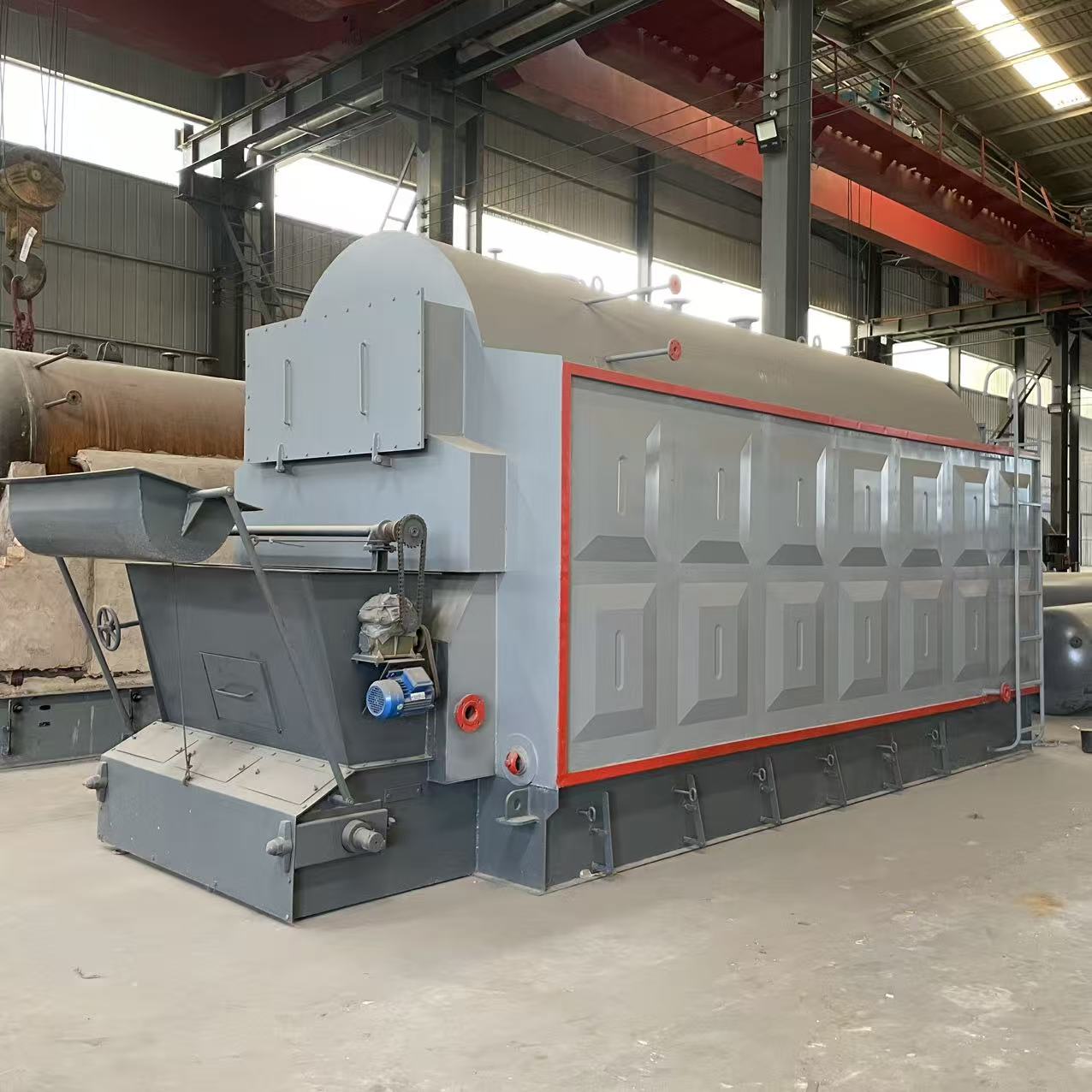

Product physical image2
FAQ
Q1: How quickly can you get the best price?
(1) We need to know the capacity of the boiler, the fuel you plan to use, and your steam pressure requirements before we can confirm the boiler model.
(2) Customers need to provide us with your name, email address, and company name, and then we will send you a price list immediately.
In addition, if you use whatsapp, skype, or WeChat, then you can provide us with your ID, which will be more convenient for us to communicate.
Q2: Why choose us?
(1) A-level boiler production qualification factory with many years of export experience
(2) 100% steel plates, steel pipes, welding rods without damage;
(3) 100% X-ray inspection (welds): ensure the quality of the entire boiler;
(4) Hydrostatic test: ensure standard working pressure and safety;
Q3: What is the service life of your boiler?
A: Generally, if operated correctly and maintained well, the boiler can be used for more than 20 years
Q4: Can I have my own customized products?
A: Of course, we can accommodate any custom requirements for color, logo, design, packaging, carton marking, language manual, etc.
Q5: Can you assist us with installation and operation training?
Yes, our company will provide drawings and operation manuals. Our engineers can also provide online technical support.
Q6: Delivery time?
We have brand new products in stock and typically ship within 15-30 days. Please contact a sales engineer to confirm the specific time.
Q7: Boiler Maintenance Cycle:
Inspections should be conducted every 2-3 weeks, primarily checking valves, pipes, flanges, etc. Any faults should be repaired promptly. A comprehensive inspection and repair must be performed every time.
